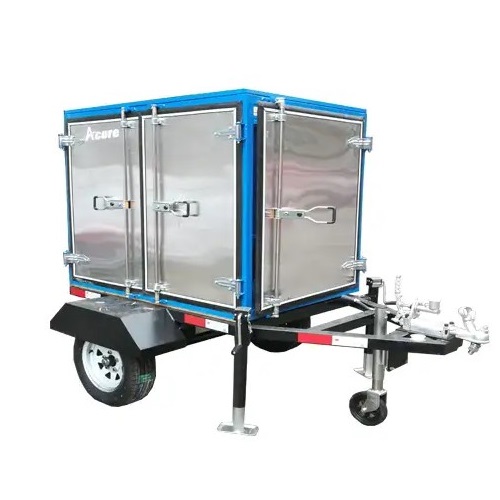

Acore MTP-100 Mobile Transformer Oil Purifier (100L/min,66kw)
制造商: Acore Model: MTP-100 保障: 12 Month - 报价要求
- 联系
Capacity (L/min): 100
Vacuum pressure: -0.06~-0.099 Mpa
Vacuum system: Double Stages
Working pressure: ≤ 0.4 Mpa
Temperature range: 20-80℃
Power supply: 380V, 50HZ, 3PH ( or Customized )
Working noise: 65 dB
Trailer type: Single Axle
Heating power (kw): 60
Total power (kw): 66
Inlet/outlet(mm): 50
Purifier Weight (kg): 900
Trailer Weight (kg): 500
Purifier Dimension (mm) (L x W x H): 1850×1600×1750 (mm)
Trailer Dimension (mm) (L x W x H): 2900×1650×1000 (mm)
Specifications after purification process:
Item Specifications
Breakdown voltage: ≥ 70KV
Water content: ≤ 3ppm
Gas content: ≤ 0.05%
Filtering rate: ≤ 0.5 micron (ISO 14/12/10)
Flash point (close cup): ≥135℃
Interfacial tension performance: > 40 Dynes / cm at 25 ℃
Power factor performance: < 0.005 % at 25 ℃
Acid value: ≤0.03 mgKOH/g
