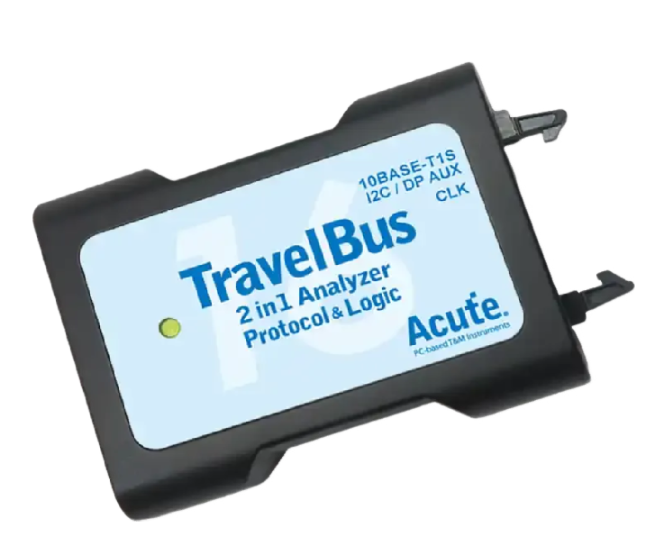

Acute TB3016F TravelBus 逻辑分析器 (19 channels; 200MHz)

Power Source: USB bus-power (+5V)

Static Power Consumption: 0.75W

Max Power Consumption: < 2.5W

Hardware Interface: USB 3.0

Timing Analysis (Asynchronous,Max. Sample Rate): 800 MHz

State Clock Rate (Synchronous,External Clock): 200 MHz

Storage: Transitional Storage

Channels: 19

4GHz Timing [Available Chs] - Memory per Ch

Input impedance: 200KΩ // <5pF

Max. (Non-destructive): ±40V DC, 15Vpp AC

Input sensitivity: 0.5Vpp @150MHz

Threshold group: 2 (ch0~7, ch8~15 & clk0)

Threshold range: ±6V

Threshold resolution: 50mV

Threshold accuracy: ±100mV + 5%*Vth

Trigger resolution: 1.25 ns

Trigger types: Channel, Pattern, Single, Width, Time-out, External

Protocol Trigger:

Protocol Trigger: I²C, MIPI I3C 1.1, SPI, UART (RS232)

Protocol Analyzer: I²C, MIPI I3C 1.1, SPI, UART (RS232)
