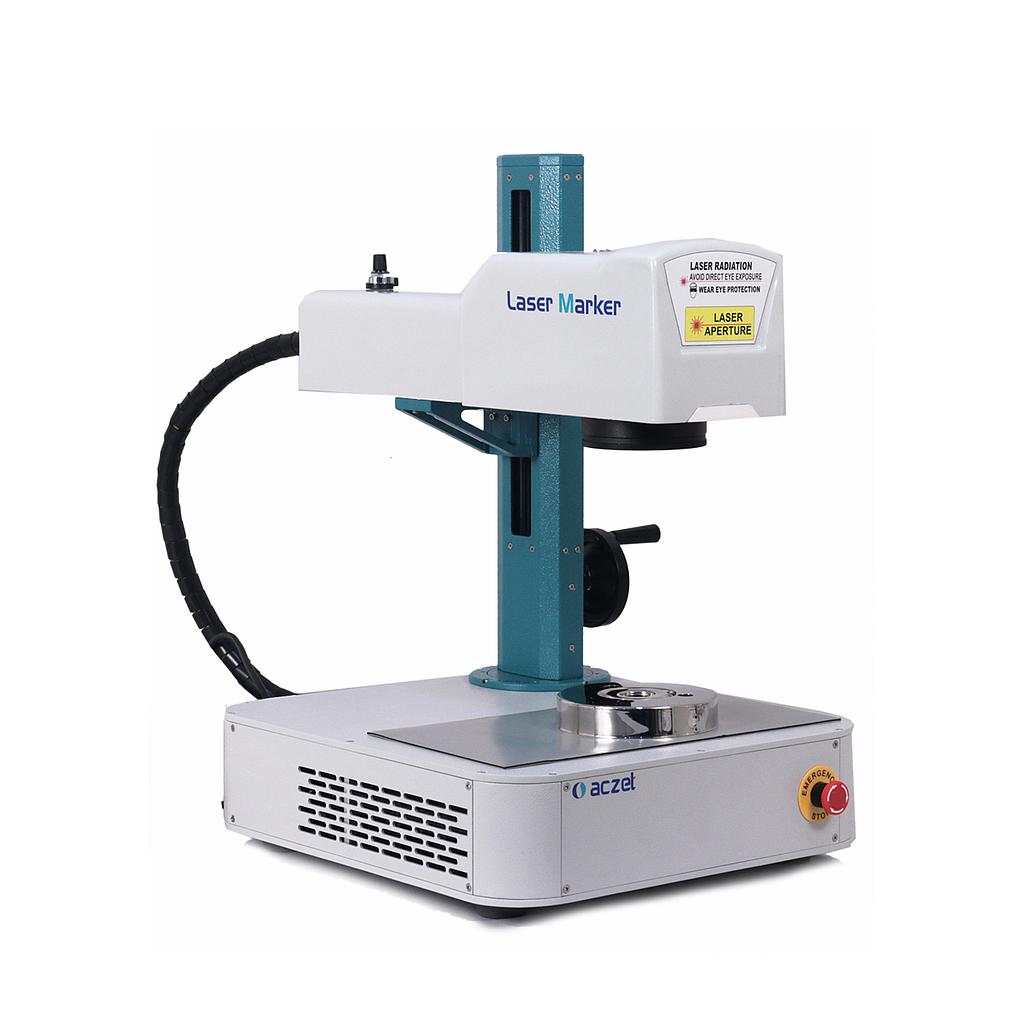

Aczet LM 20 光纤激光打标机 (16.5 - 18.5 kW)
制造商: Aczet Model: LM 20 - 联系
Laser Source: Pulsed Powerful Fiber Laser
Laser Power: 20 W
Pick Power: 16.5 - 18.5 kW
Laser wavelength: 1064 ± 1 nm
Beam Quality M2: < 1.4
Pulse Repetition Rate: 20 Hz - 100KHz
Marking Area (mm): 100 x 100
Working Life Of Laser: Greater than 50,000 hours
Marking Speed: < 15000 mm/sec
Laser Frequency: 20 - 100 kHz
Cooling System: Air Cooling
Axis: Auto Z Axis
Minimum Width: 0.03 mm
Minimum Character: 0.3 mm
Repeatability: 0.003 mm
Power Consumption (W): 800 W
Power Supply: 220 V AC. 50 Hz Singler Phase
Dimension (LxWxH) mm: 450 x 340 x 520
Net Weight (Kg): 16 kg
Packing Dimension (LxWxH): 650 x 450 x 380
