Adash A3716 在线监测和诊断系统

- input channels AC: 16 AC, ICP® power supply on/off; input impedance 100kΩ; integration single, double; high pass filter 1 Hz - 12800 Hz; low pass filter 25 Hz - 25600 Hz
-input channels Dc: 16 DC for process values; input impedance 100 kΩ (VDC), 250 Ω (mADC)
-TACHO inputs: 4 independent TACHO for external trigger; speed range 0,8 Hz - 1000 Hz
-input range: AC +/- 12 V peak-peak; DC +/- 24 V or 4 - 20 mA; TACHO +10V
-AD conversion: 24 bit, 64 bit double floating point internal signal processing
No AutoGain function!
-Dynamic range s/n:120 dB
-frequency ranges:max. 25,6 kHz (16 Ch, 65,5 kHz sampling)
-sampling mode:Fully simultaneous for 16 channels
-FFT resolution:
Min. 100 lines
Max. 25600 lines
-processor: Intel Core2 - 2.5 GHz
-memory RAm:4 GB
-internal data disc:SSD 128GB
-Data acquisition:
Overall values
Time signals
FFT real time analysis
DEMOD - ENVELOPE analysis
ACMT - low speed bearing analysis
order analysis
user band pass analysis
RPM measurement
DC measurement
Orbit measurement
Speed measurement
-signal Recorder:
64 kHz sampling frequency
4 Ch memory consumption 3 GB/hour
4 Ch total recording - 35 hours
- trigger: free run, TACHO, external (voltage)
-communication: Ethernet 1GB RJ45
-temperature range:-10̊C to +50 ̊C
-power: AC 110 - 240 V, 45 - 65 Hz
-case: 19 ́ ́aluminium rack
-size & Weight (2u):430 x 360 x 90 mm ;4,7 kg
-size & Weight (3u): 430 x 360 x 135 mm ;6,2 kg

Detail

datasheet

manual

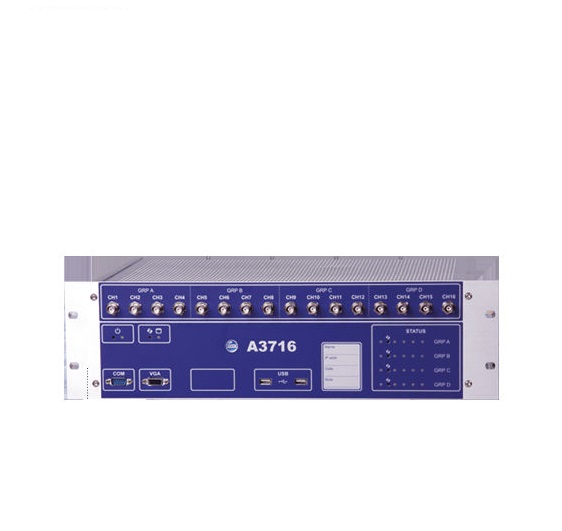

The A3716 is powerful online monitoring system for rotating machinery. The A3716 system can operate as an independent monitoring system or it can be used as extension of an existing protection system. The A3716 module contains 16 AC, 16 DC and 4 TACHO inputs. All channels are measured simultaneously. The A3716 modules can be easily composed together and by this we can create system with more channels.

The set up and control of A3716 is done by DDS software. The set up has never been easier. The only thing you need to do is to create the tree of machines, measurement points and required readings and assign them to appropriate channels. Then you just press START and the readings are done automatically.

  • 16 channels AC
  • 16 channels DC
  • 4 TACHO inputs
  • 16 BNC buffered outputs of signals from sensors
  • 16 programmable relays outputs
  • 16 programmable 4-20 mA outputs
