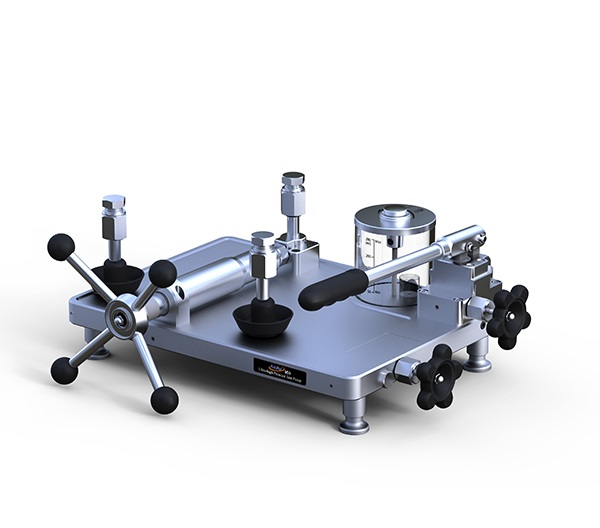

Additel 959 液压试验泵

Media:   Diethylhexyl Sebacate

Reservoir capacity: 420 ml

Pressure Range: 0 to 40,000psi (2,800bar) gauge pressure

Material:

Ram/adapters: SS

Body: SS, aluminum, Copper

Seals: Buna-N, PTFE, Copper Alloy, Aluminum Alloy

Connection

Test Gauge Connection: Positional Autoclave

F-250-C, 9/16" - 18 UNF female

Reference Gauge Connection: Positional Autoclave

F-250-C, 9/16" - 18 UNF female

1/2BSP female and M20X1.5 female connections

are available upon request.


Dimensions:

Height: 6.9" (175 mm)

Base: 17.9" (455 mm) x 15.0" (380 mm)

Weight: 28.7 lb (13 kg).

Piston volume: 1.5 ml


Accessories included

Diethylhexyl Sebacate,1 bottle (250 ml)

 Manual: 1 pc

Carrying case (959-X-SET models only)
