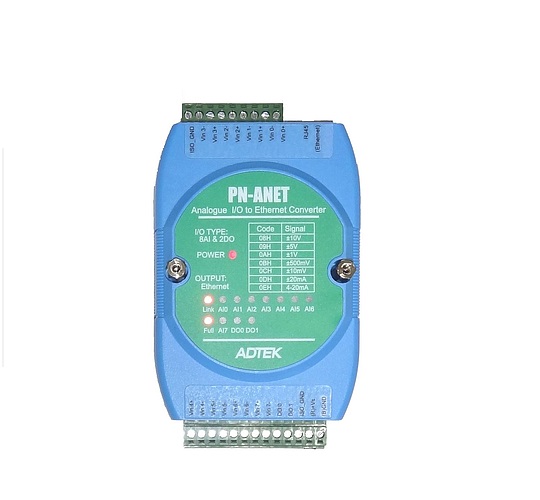

ADTEK PN-ANET 类比输入转乙太网(±150mV,±500mV,0~5V,±10V /或0~20mA,4~20mA)

  • 制造商: Adtek
    Model: PN-ANET
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




CPU: ASIX MCU
Network interface: 10M/100M BASE-T, RJ-45 connector
Protocol: TCP/ IP,UDP,DHCP Client, HTTP, Modbus/TCP
Analog Input: 8 AI
+ Input range: Voltage and Current changeable by dip-switch
- Voltage: ±150mV、±500mV、0~5V、±10V
- Current: 0~20mA / 4~20mA
Imput impedance: 0-10V:20MΩ/4~20mA:120Ω
Digital output: 2 channel, Open collector voltage:≤50V, Maximum load current:500mA
Resolution: 16 bits ADC
Accuracy: ± 0.1% or even lower
Sampling time: 10 samples/ sec
Security: password
Power Supply: DC10~30V
Weight: 150g
APPLICATIONS
- Data collection
- Remote Sensors and Various Meters
- Access control terminals
- Environmental monitors
- Data loggers
