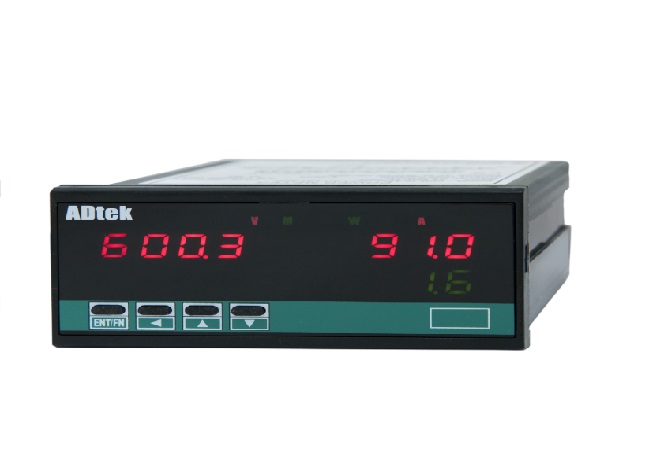

ADTEK CPM-10 经济型多功能电力表(96 x 48mm,TRMS)

- Feature: True RMS
- Input Range:
Voltage: 50~500V L-N
Current: 0 ~ 1/ ~ 5A (max.)
Frequency: 50/60Hz ± 3Hz
- Sampling rate: 128point/Cycle
- Response time: ≤ 100ms
- Relay output: 1 set SPDT, 1A/230VAC, 3A/115V
- Temperature: 0~60 ˚C
- Humidity.(%RH): 20~95 %RH, Non condensing
- Size: 96mm(W) x 48mm(H) x 120mm(D)
- Weight: 350g

Detail

Select the bottom ordering

Datasheet

Operating Manual

Option
- Relay Output/ Pulse
- Analog Output ( 0~10V, 4~20mA)
- RS 485 Modbus Communication
