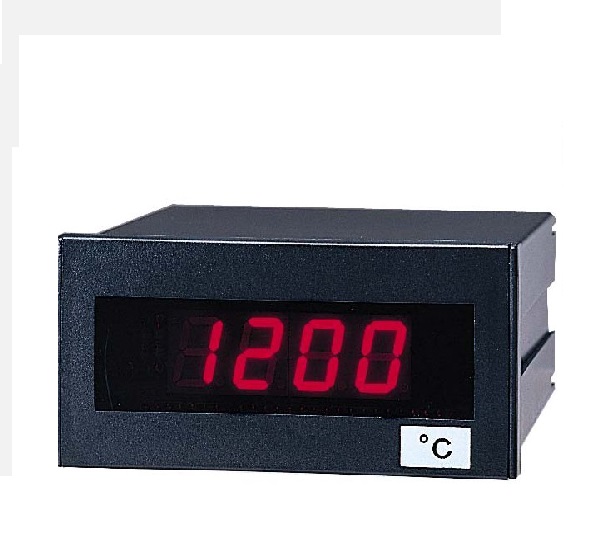

Adtek CST-321 3 1/2位数温度显示器

FEATURE

● Measuring T/C: K, J, T, E, R RTD: Pt100Ω

● Accuracy: T/C: ±0.25% , RTD: ±0.1%

● 3 1/2 Digital display: 1999 (Option range 199.99 in pt100Ω

input)

● Easy-to-wire, screw type terminal

● Outside dimensions is 1/8 DIN standard (96x48 mm)

● High stability & low cost

Measuring Range Resolution Input

K 0~1200°C 1°C ≧1MΩ

J 0~750°C 1°C ≧1MΩ

T 0~400°C 1°C ≧1MΩ

E 0~1000°C 1°C ≧1MΩ

Thermocouple

R 400~1600°C 1°C ≧1MΩ

Pt100-199.9~199.9°C 0.1°C≧1MΩ RTD Pt100 0~800°C 1°C ≧1MΩ
