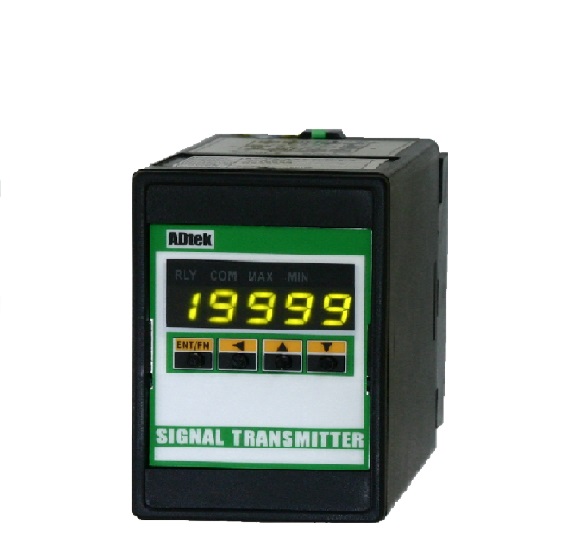

ADTEK ST-PM 电位计讯号多功能转换器(0~100K欧姆)

Measuring potentiometer from 0~50Ω/~2.0KΩ; 0~2.0KΩ/~100.0KΩ (3wire)
Accuracy: ± 0.04%
Display range: -19999~29999
Input Impedance: ≥ 1M ohm
Operating temp.: 0~60 ˚C
Back up memory: By EEPROM
Dimensions: 50mm(W) x 134mm(H) x 80mm(D) with socket
Power supply: AC 115 or 230V ± 15%, 50/60Hz
Weight: Under 480g(without socket)

Details

Select the bottom ordering

Datasheet

Operating Manual

Option
- Relay Output
- Analog Output
- RS485 Communication
- Aux Power: DC 25~56V
