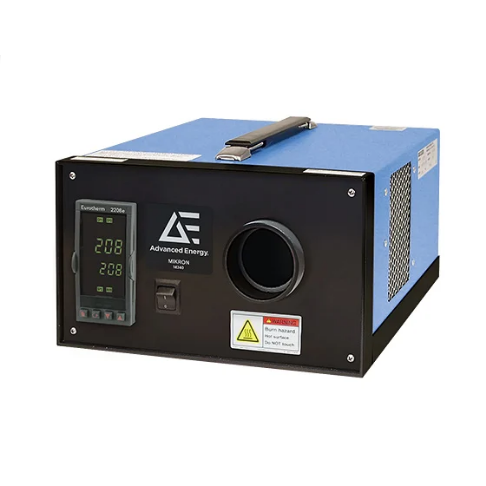

Advanced Energy Mikron M340 Calibration Source (-20 ~ 150°C)

  • 制造商: Advanced Energy
    Model: Mikron M340
    P/N: 14750-5C
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




- Temperature Range: -20 ~ 150°C (-4 ~ 302°F)
- Temperature Uncertainty:
Standard Radiometric calibration: ±1°C @ 8 ~ 14 μm
Optional Thermometric calibration: ±0.1°C
- Temperature Resolution: 0.1°C
- Stability: ±0.1°C per 8-hour period
- Source Non-Uniformity:
±0.2°C less than 100°C
±1.3 °C greater than 100°C
- Heated Cavity Shape: Flat plate
- Exit Port Diameter: 51 mm (2”)
- Emissivity ε:
Radiometric calibration: 1.0 @ 8 ~ 14 μm
Thermometric calibration: ≈0.98
- Standard Calibration Method:
Standard: Radiometric (pyrometric)
Optional: Thermometric
- Temperature Sensor: Precision platinum RTD
- Warm-up Time: ≈6 minutes from ambient to –15°C or 100°C
- Slew Rate to 1°C Stability:
Approximately 40° per min from ambient to 150°C
Approximately 20° per min from 20 ~ 10°C
Approximately 3° per min from -10 ~ -20°C
- Slew Rate to 0.1°C Stability: Approximately 2 minutes between Δ 10°C setpoints (slightly longer T < -10 °C)
Communication and Electrical Specifications:
- Remote Set Point Via RS232
- Method of Control Digital self tuning PID controller
- Power Requirements: 220 ~ 240 VAC @ 50 and 60 Hz, with calibration port
Environmental
- Operating Ambient Temp: 5 ~ 40°C (41 ~ 104°F)
- Cooling: Peltier modules for heating and cooling
- Operating Humidity: 90% RH max, non-condensing in heating mode. Environment dew point must be less than setpoint when in cooling mode. (N2 purge connection available)
- Dimensions (H x W x D): 167 mm x 280 mm x 280 mm (6.5” x 11.0” x 11.0”)
- Method of Mounting: Bench/table
- Weight: 7.1 kg (15.6 lbs)
- CE Certified: Yes
