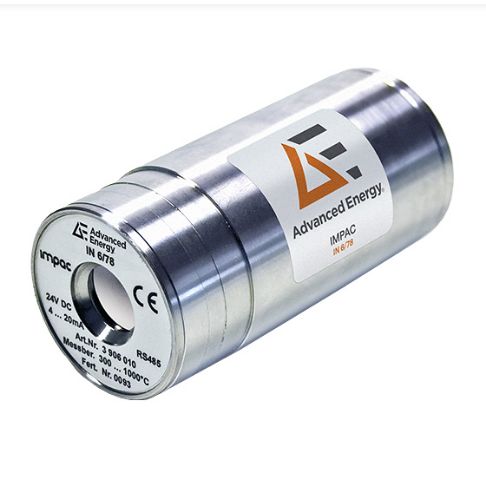

Advanced Energy IN 6/78-L 红外温度传感器 (400 ~ 1100°C)

- Temperature Range: 400 ~ 1100°C (752 ~ 2012°F)
- Optics 370: a (Measuring distance) = 0, 200, 370, 500, 1000mm
- Spectral Range: 7.8 μm, FWHM 0.6 μm
- Resolution: 0.1°C on interface, <0.1% of temperature range at the analog output
- Measurement Uncertainty (e = 1, t90 = 1 s, Tamb. = 25°C): 0.7% of reading or 3.5 °C, whatever is greater, in °C
- Repeatability (ε = 1, t90 = 1 s): 1°C
- Emissivity ε: 10 ~ 125%, adjustable in steps of 0.1%
- Noise Equivalent Temperature Difference (NETD) (ε = 1, Tamb. = 44°C):
IN 6/78-L: 500°C
NETD at t90 = 80 ms / °C = 0.3
NETD at t90 = 1 s / °C = 0.1
IN 6/78-L: 800°C
NETD at t90 = 80 ms / °C = 0.3
NETD at t90 = 1 s / °C = 0.1
- Sighting: None
- Optics: Silicon
Electrical
- Power Supply: 24 VDC (18 ~ 30 VDC) nominal, ripple must be less than 0.5 V
- Power Consumption: Max 50 mA
- Load: Max 500 Ω
Environmental
- Protection Class: IP 65 IEC 60529 (value in mated condition)
- Ambient Temperature: 0 ~ 70°C (32 ~ 158°F)
- Storage Temperature: -20 ~ 80°C (-4 ~ 176°F)
- Weight: 410 g (≈0.90 lbs)
- Housing: Stainless steel
- CE Label: According to EU directives about electromagnetical immunity
- Interface: Connection 12-pin connector
Communication
- Analog Output: 0 ~ 20 mA or 4 ~ 20 mA (linear)
- Digital Interface: RS485 (half-duplex)
- RS485 Bus Address: Set via digital interface
- RS485 Baud Rate: 1200 Bd to 115.2 kBd
- Scope of Delivery: Pyrometer with PC software InfraWin for adjustment and evaluation, Works Certificate, and Manual

Details

Datasheet
