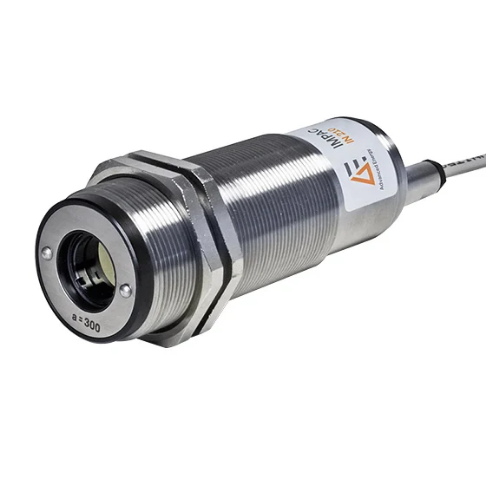

Advanced Energy IN 210 红外测温仪 (-32 ~ 900°C, 800mm)

- Temperature Range: -32 ~ 900°C (-25.6 ~ 1652°F)
- Spectral Range: 8 ~ 14 μm
- Resolution: 0.1°C
- Emissivity ε: 0.2 ~ 1.0 adjustable via service interface
- Measurement Uncertainty (e = 1, t90 = 1 s, Tamb. = 25°C): 1% of reading in °C + 1°C
- Repeatability (e = 1, t90 = 1 s, Tamb. = 25°C): 0.5% of reading in °C + 1°C
- Optics:
fixed optics
a = 800 mm
Electrical:
- Power Supply: 24 VDC ± 25%; ripple ≤ 500 mV
- Power Consumption: Max 0.6 W
- Aperture: 15 mm
Communication and Interface:
- Analog Output: 4 ~ 20 mA, linear; max load 700 Ohm at 24 V
- Response Time t90: 120 ms, adjustable up to 10 s via service interface
Environmental
- Protection system: IP 65 (DIN 40050)
- Ambient Temperature: 0 ~ 70°C (32 ~ 158°F) at housing
- Storage Temperature: -20 ~70°C (-4 ~ 158°F)
- Weight: ≈450 g (≈0.992 lbs)
- CE Label: According to EU directives about electromagnetical immunity
