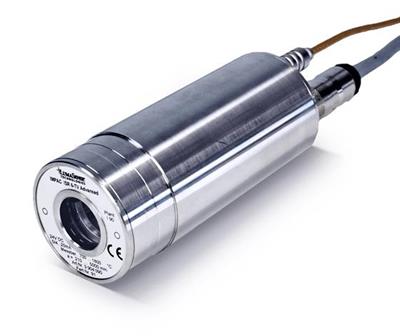

Advanced Energy ISR 6-TV 红外线温度计 (700 ~ 1800°C)

- Temperature Range: 700 ~ 1800°C (1292 ~ 3272°F) (MB 18)
- Spectral Ranges:
Channel 1: 0.9 μm
Channel 2: 1.05 μm
- Resolution:
768 x 576 pixel video chip
768 x 520 pixel displayed on screen
- Emissivity ε: 0.050 ~ 1.000 in steps of 1/1000 (1-color mode)
- Measurement Uncertainty (κ = 1, t90 = 1 S, Tamb. = 25°C):
< 1500°C: 0.3% of reading in °C + 2°C
> 1500°C: 0.6% of reading in °C
- Repeatability (κ = 1, t90 = 1 S, Tamb. = 25 °C): 0.15% of reading in °C + 1°C
Optical Specifications:
- Sighting: Built-in laser aiming light (max. power level < 1 mW, λ = 630 ~ 680 nm, CDRH class II) or through-lens sighting
- Optics: Manually focusable from rear cover measuring distance a = 210 ~ 5000 mm
- Distance Ratio:
MB 14 approx. 100:1
MB 18 approx. 190:1
MB 25 and MB 30 approx. 350:1
- Field of View: About 11.6% x 8.4% of the adjusted measuring distance
Electrical:
- Power Supply: 24 VDC ±25%, ripple must be less than 50 mV
- Power Consumption: Approximately 3 W (including laser)
Environmental
- Protection Class: IP 65 IEC 60529 (value in mated condition)
- Operating Ambient Temperature: 0 ~ 60°C on the housing
- Storage Temperature: -20 ~ 80°C (-4 ~ 176°F)
- Weight: 0.6 kg
- Housing: Stainless steel
- CE Label: According to EU directives about electromagnetical immunity
Interface:
- Connection: 12-pin connector
Communication
- Analog Output: Adjustable 0 ~ 20 mA or 4 ~ 20 mA, linear (via digital interface)
- Digital Interface: RS485 addressable (half-duplex)
Baud rate: 1200 Bd to 115.2 kBd (on request RS232, not addressable)
- Response Time t90: 2 ms (with dynamic adaption at low signal levels); adjustable to min; 0.01 s; 0.05 s; 0.25 s; 1 s; 3 s; 10 s
- Scope of Delivery: Pyrometer with PC software InfraWin for adjustment and evaluation, Works Certificate, and manual.
