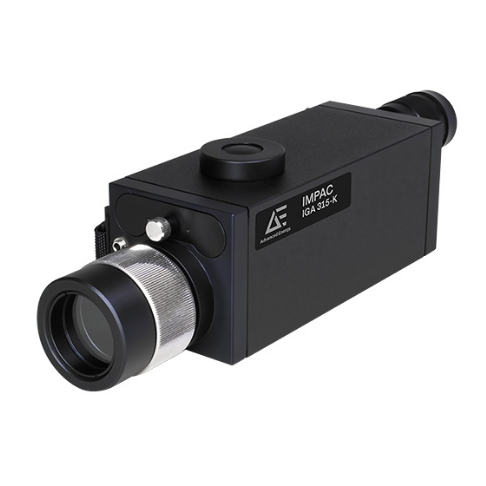

Advanced Energy IGA 315-K 红外测温计 (600 ~ 1600°C)

- Temperature Range: 600 ~ 1600°C (1112 ~ 2912°F)
- Spectral Ranges: 1.58 ~ 1.8 μm
- Resolution: 1°C/°F
- Emissivity ε: Adjustable from 0.1 ~ 0.99 in steps of 0.01
- Measurement Uncertainty: 0.75% of measurement value (ε = 1, Tamb. = 25°C, t90 = 1 s)
- Repeatability: < 0.3% of measurement value (ε = 1, Tamb. = 25°C, t90 = 1 s)
- Temperature Coefficient: 0.01% / K (Tamb.=23°C) of reading
Optical Specifications:
- Sighting: Viewfinder with measurement value in eyepiece and circular measuring field marking
- Optics: Focusable optics, adjustable from a = 1 ~ 12 m
- Distance Ratio: ≈300:1 (e.g. 30 mm @ 9 m distance)
Electrical:
- Power Supply: 6 x AA batteries 1.2 V; 1,800 mA; NiMH
Environmental
- Protection Class: IP54 (to DIN 40 050)
- Ambient Temperature: 0 ~ 50°C (32 ~ 122°F)
- Storage Temperature: -10 ~ 65°C (14 ~ 149°F)
- Relative Humidity: Non-condensing conditions
- Weight: 1.3 kg with batteries
- Housing: Powdercoated, black RAL 9005
- CE Label: According to EU directives about electromagnetical immunity
Interface
- Display:
LED 4 digit info display
Infrared interface
- Detector: InGaAs photodiode
- Tempeature Display: 3 values per s
- Dimensions (L x W x H): 260 mm x 70 mm x 70 mm (10.2" x 2.8" x 2.8")
Communication:
- Serial Interface: USB interface adapter
- Response Time t90: 10 ms
- Data Storage: 2000 measurement values, storage of: measurement value, date, time
- Basic equipment: IGA 315-K; battery set with 6 x AA NiMH batteries; thermal protection sleeve; neutral density filter, mounting screw for neutral density filter; high temperature protective screen; carrying straps; charger for internal charging; factory certificate; manual.
