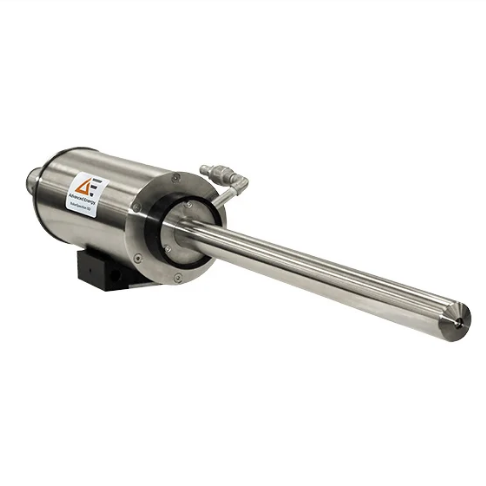

Advanced Energy BoilerSpection SD 红外热像仪 (500 ~ 1600°C, 3.9 μm)

- Wavelength: Narrowband 3.9 μm
- Resolution: 320 x 240
- Protective Housing: IP66 with integrated vortex air cooling
- Measurement Range: 500 ~ 1600°C (932 ~ 2912°F)
- Ambient Environment: Up to 60°C (140°F)
- Power Supply: Included, input is universal AC
- Camera Weight: 13.5 kg (30 lbs)
Lens:
- Construction: Stainless steel with air cooling purge
- Field of View (H x V) 50° x 38°
- Focus: Manual
- Diameter: 42 mm (1.65")
Facility Connection Requirements:
- Power: 110 ~ 240 VAC, two 15 amp lines to support six cameras
- Electrical Cabinets: All cabinets/panels are NEMA 4 / IP65
- Air Supply: 20 ~ 30 scfm @ min 80 psi per camera
Automatic Retraction Device and Mounting:
- Mounting: Weld or bolt on mounting plates
- Waterwall Opening: 50 mm (2") gap
- Weld-On Thru Hole: 64 mm (2.5") circle
Networking:
- Number of Cameras: Up to 24 with a single controller
- Camera Connection: 100 Base T Ethernet
