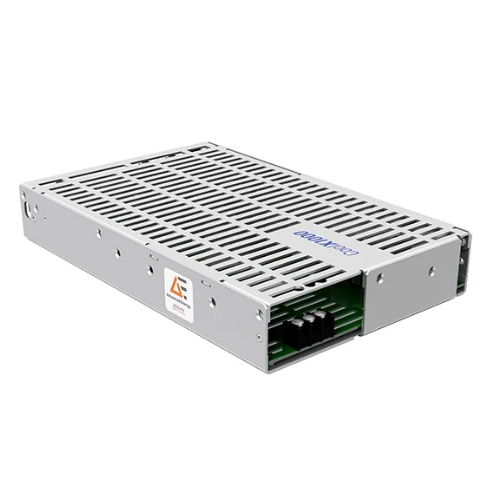

Advanced Energy CoolX1000 电源低压 (1000W)

Input
- Nominal Input Voltage Range: Universal Input 47~440 Hz, 100~240VAC
- AC Operating Input Range: 85~264VAC
- Extended AC Operating Range: Maximum for 5 seconds, 300VAC max
- DC Input voltage range: 120~300VAC
- Input Current: 90 VAC @ 620 W, 8.5A Nom
- Inrush Current: 230 VAC @ 1000 W, 25A Max
- Power Factor: 120 VAC @ 800 W, 0.98 Min
- Efficiency:
230 VAC, 1000W with 5 x CmC CoolMods: 92% Nom
230VAC, 1000W with CmB/CmC/CmD/CmF combination: 93% Nom
Output
- Power Rating: 1000W Max
- Line Regulation:
For ±10% change from nominal line: ±0.1 %
CmE, CmF, CmG, CmH: ±0.5 %
- Ripple and Noise:
100 mV or 1.0% pk-pk. 20 MHz BW: 1 %
CmE, CmF: 1.5 %
- Capacitive Load:
Nominal output voltages at full load CmG, CmH, CmE, CmF: 270uF, 270uF, 10mF, 2.5mF
Environmental:
- Operating Temperature: Operates to specification below -20°C after 10 min warm-up, -40~85 °C
- Storage Temperature: -40~85 °C
- Relative Humidity: Non-condensing, 5~95%RH
- Altitude: 5000 m
- Dimensions (L x W x H): 254 mm x 165.1 mm x 39.1 (10 in x 6.5 in x 1U)
- Weight: 1 Kg

Detail

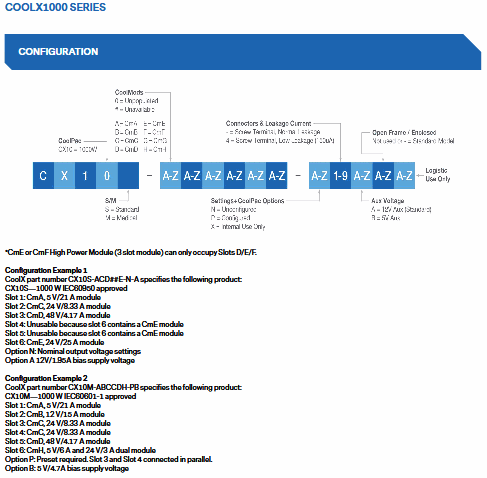

Datasheet
