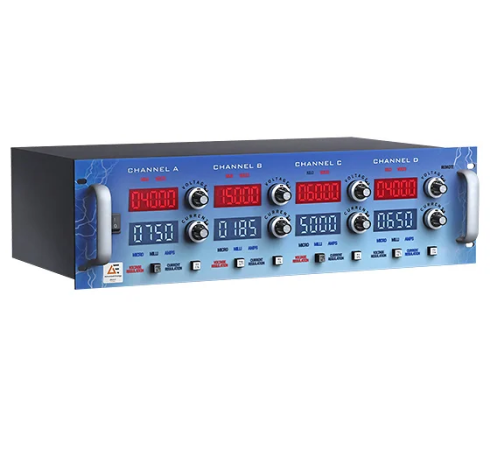

Advanced Energy HV Rack X-750 Rack-Mount Power Supply (up to 40kV)

AC Input
- Voltage: Full Power, Autoswitching: 230 VAC, 50/60 Hz
- Power: 240 VAC, Max Eout , Full Load: 1125 W
Remote Control
- Enable: All Channels, TTL high to enable, low to disable (DEFAULT IS DISABLE)
- V Control: All Channels, 0 V ~ 4.64 V = 0 V ~ 100% HV out (5 V = 108% HV out)
- HV Monitor: All Channels, 0 V ~ 4.64 V = 0 V ~ 100% V out (5 V = 108% V out)
- I Control: All Channels, 0 V ~ 4.64 V = 0 A ~ 100% lo (5 V = 108% lo)
- I Monitor: All Channels, 0 V ~ 4.64 V = 0 A ~ 100% lo (5 V = 108% lo)
- Reference Out: All Channels, 5 V precision voltage reference returned to signal ground
- LVPS Out: One Signal, PTC Fused, +15 V ±10%, 0 ~ 100 mA
- Power Ground: One Signal, Return of LVPS Out
- Global Disable: One Signal, TTL signal disables all Channels, low to enable, high to disable (DEFAULT IS ENABLE)
Output Meters
- Voltage: 4½ Digit Red LED
Tolerance: 1% Full Scale
- Current: 3½ Digit Blue LED
Tolerance: 1% Full Scale
Environmental:
- Operating: Full Load, Max Eout, Case Temp. +10°C ~ +45°C
- Storage: Non-Operating, Case Temp. -40°C ~ +85°C
- Humidity: All Conditions, Standard Package, 0 ~ 95% non-condensing
- Altitude: Operating, 0 ~ 10,000 ft
- Altitude: Storage, 0 ~ 50,000 ft
Packaging:
- Chassis Length: Not including mounting feet, 18.5 in (469.9 mm)
- Chassis Width: Not including mounting feet, 17.0 in (431.8 mm)
- Chassis Height: Not including mounting feet, 5.0 in (127.0 mm)
- Front Panel Length: Not including handles or controls, 19.0 in (482.6 mm)
- Front Panel Width: Not including handles or controls, 0.125 in (3.18 mm)
- Front Panel Height: Not including handles or controls, 5.25 in (3U or 133.35 mm)
- Weight: Overall (configuration dependent), ~30 lbs (11.2 kg)
- Weight: Shipping (configuration dependent), ~40 lbs (14.93 kg)

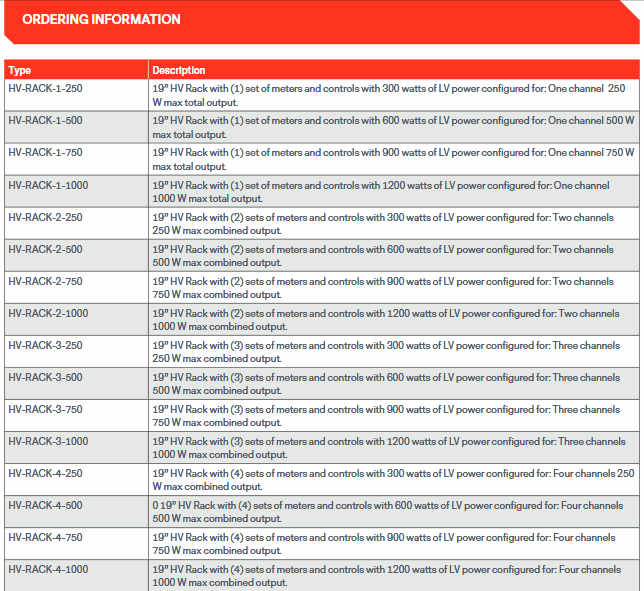

Connectors and Options:
- Standard HV Connector: Alden B110YX10 (one per channel)
- Available Options:
Floating/Isolated Channels
SHV Connectors
Alden Connectors
Removable Mounting Feet
