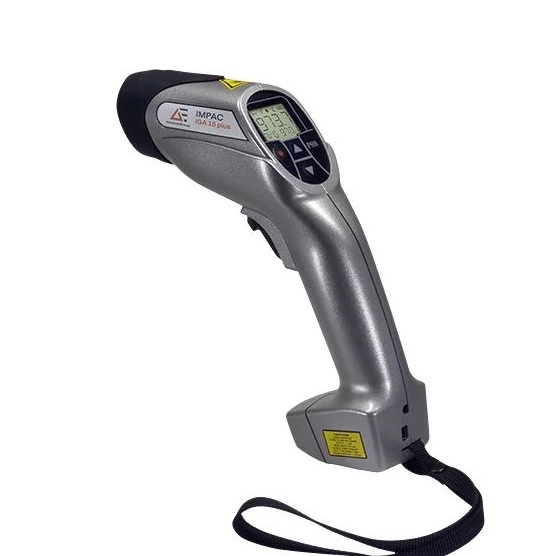

Advanced Energy IGA 15 plus Metal Applications Pyrometer (250 ~ 1800°C)

- Temperature Range: 250 ~ 1800°C (482 ~ 3272°F)
- Optics: Focusable: 1000 ~ 12,000 mm
- Spectral Ranges: 1.45 ~ 1.8 μm
- Emissivity ε: Adjustable 10 ~ 100% in 0.1% steps
- Measurement Uncertainty: 0.6% of measurement value (ε = 100%, Tamb. = 23°C)
- Repeatability: < 0.2% of measurement value
- Temperature Coefficient: 0.01% of measuring value in °C, per °C deviation of ambient temperature of 23°C
Electrical:
- Power Supply: 9 V battery (IEC 6LR61) or 9 V-NiMH rechargeable battery (e.g. Varta type 5622)
- Battery Operation Time:
50 hours with 9 V battery (without laser and display illumination)
15 hours with 9 V rechargeable battery (without laser and display illumination)
Environmental
- Protection Class: IP20
- Ambient Temperature: 0 ~ 60°C (32 ~ 140°F)
- Storage Temperature: -20 ~ 70°C (-4 ~ 158°F)
- Relative Humidity: Non-condensing conditions
- Weight: 340 g
- Housing: ABS
- CE Label: According to EU directives about electromagnetical immunity
Interface
- Display Illumination: Automatically adjusting to ambient light conditions
- Detector: InGaAs
- Tempeature Display: 3 values per s
- Temperature Resolution: On the display: 0.1°C (°F) from 250 ~ 999.9°C (482~ 999.9°F), 1°C from 1000 ~ 1800°C (1000 ~ 3272°F)
Via interface: 0.1°C or 0.1°F
Communication:
- Serial Interface: USB 2.0
- Response Time t90: 10 ms
- Data Storage: Manual data logging via push button or automatic logging in adjustable time intervals [s]: 0.02, 0.04, 0.1, 0.2,0.5, 1, 2, 5, 10, 20, 50
- Fixing Thread: Photo tripod thread 1/4" - 20 UNC
- Scope of Delivery: Instrument, battery, carrying case, inspection sheet, and user manual
- Accessories: Belt bag, Close-up lens, Battery charger, CD PortaWin and USB cable
