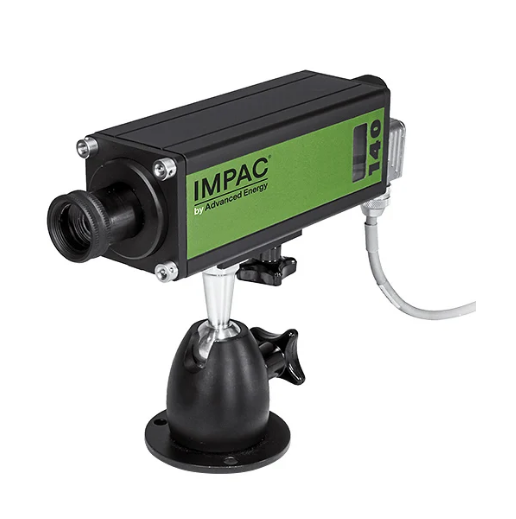

Advanced Energy IN 140/5 玻璃应用高温计 (250 ~ 2500°C)

- Temperature Range:
250 ~ 1400°C (482 ~ 2552°F)
300 ~ 1600°C (572 ~ 2912°F)
450 ~ 1500°C (842 ~ 2732°F)
500 ~ 2500°C (932 ~ 4532°F)
- 3 focusable optics:
a = 100 ~ 128 mm
a = 187 ~ 322 mm
a = 362 ~ 2170 mm
- Spectral Ranges: 5.14 μm
- Infrared Detector: Thermopile
- Resolution:
Interface: 0.1°C
Display: 0.1°C/°F (450 ~ 999°C / 842 ~ 999°F), 1°C (= 1000 °C/°F)
< 0.1% of the adjusted temperature subrange at the analog output
- Emissivity ε: 10 ~ 120% adjustable in the instrument or via interface in steps of 0.1%
- Measurement Uncertainty (e = 1, t90 = 1 s, Tamb = 23°C):
Below 1300°C: 0.6% of reading in °C or 2°C (Tamb = 15 ~ 30°C); 1% of reading in °C or 3°C (Tamb = 0 ~ 15 or 30 ~ 70°C)
Above 1300°C: 0.8% of reading in °C (Tamb = 15 ~ 30°C); 1.2% of reading in °C (Tamb = 0 ~ 15 or 30 ~ 70°C)
- Repeatability (e = 1, t90 = 1 s, Tamb = 23°C): 0.3% of measured value in °C
- Sighting: Through lens view finder or laser targeting light (max. power level < 1 mW, l = 630 to 680 nm, CDRH class II)
Communication:
- Analog Output:
0 ~ 20 mA or 4 ~ 20 mA (linear), switchable
Test current 10 mA or 12 mA by pressing test key
- Digital Interface: RS232 or RS485 addressable (half duplex), switchable; baud rate 1200 up to 115200 Bd
- Exposure Time t90: 40 ms, adjustable up to 0.05 s, 0.25 s, 1 s, 3 s, 10 s
Electrical
- Power Supply: 24 V AC/DC (14 ~ 30 V AC/DC) (AC: 48~ 62 Hz)
- Power Consumption: Max 1.2 W
- Load: 0 ~ 500 Ω
Environmental:
- Ambient Temperature: 0 ~ 70°C (32 ~ 158°F) at housing
- Storage Temperature: -20 ~ 80°C (-4 ~ 176°F)
- Weight: ≈550 g (≈1.21 lbs)
- Scope of Delivery: Device with through lens sighting or laser targeting light, selectable optics, InfraWin software, allen key 3 mm, and operation manual.

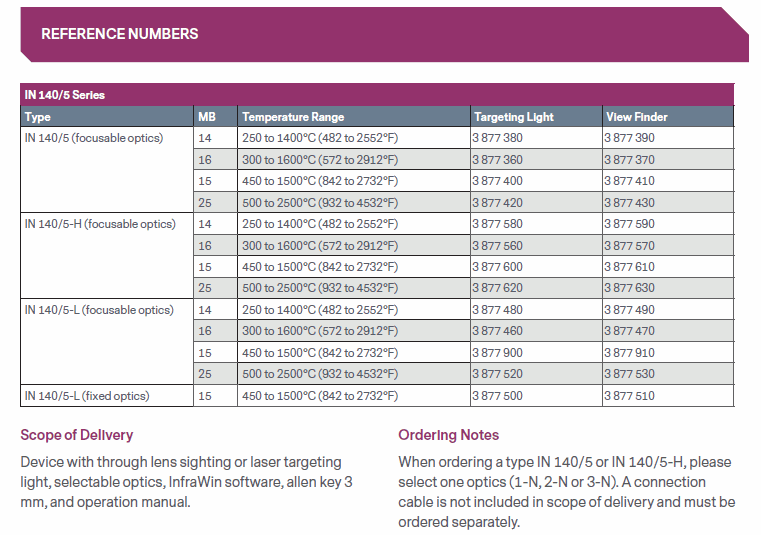

- Ordering information: Please check below PN

Details

Datasheet
