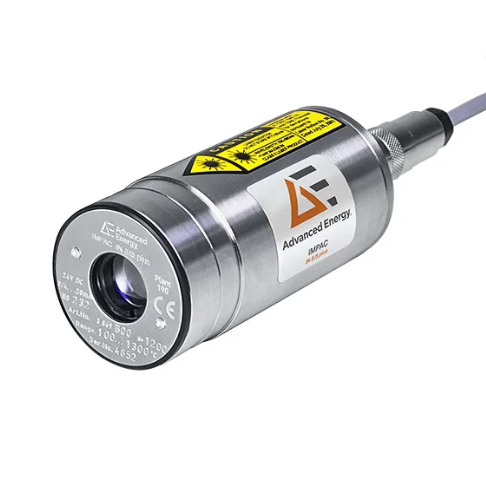

Advanced Energy IN 5/5-L plus 红外测温计 (200 ~ 2500°C, 800mm)

- Temperature Range:
200 ~ 1300°C (392 ~ 2372°F) (MB 13)
400 ~ 2500°C (752 ~ 4532°F) (MB 25)
- 3 optics:
105mm, 370mm, 800mm
- IR Detector: Thermopile
- Spectral Range: 5.14 μm
- Emissivity ε: 0.2 ~ 1.0 adjustable
- Measurement Uncertainty Tamb (ε =1, t90 = 1 s):
T < 1300°C: 0.8% of reading in °C or 1°C (Tamb = 15 ~ 30°C); 1% of reading in °C or 1°C (Tamb = 0 ~ 15°C or 30 ~ 63°C)
T = 1300 ~ 1800°C: 0.8% of reading in °C (Tamb = 15 ~ 30°C); 1.2% of reading in °C (Tamb = 0 ~ 15°C or 30 ~ 63°C)
T = 1800 ~ 2500°C: 1% of reading in °C (Tamb = 15 ~ 30°C); 1.4% of reading in °C (Tamb = 0 ~ 15°C or 30 ~ 63°C)
- Repeatability (ε =1, t90 = 1 s): 0.3% of reading in °C or 0.6°C
- Optics: Zinc-Sulfide (ZnS) lens
- Sighting: Laser targeting light (max power level < 1 mW, λ = 630 ~ 680 nm, CDRH class II)
Electrical:
- Power Supply: 24 VDC (18 ~ 30 V); nominal, ripple must be less than 0.5 V
- Power Consumption: Max 70 mA
- Load Max: Max 500 Ω @ 24 V (max 200 Ω @ 18 V)
Environmental:
- Ambient Temperature:
0 ~ 63°C (32 ~ 145.4°F)
- Storage Temperature: -20 ~ 70°C (-4 ~ 158°F)
- Weight: ≈ 410 g (≈14.47 ounces)
- Housing: Stainless steel
Interface and Communication
- Analog Output: 0 ~ 20 mA or 4 ~ 20 mA (linear), adjustable
- Interface: RS232 or RS485 (addressable, half duplex), baud rate 1.2 ~ 19.2 kBd, resolution 0.1°C
- Exposure Time t90: 0.18 s
- Scope of Delivery: Instrument with selected optic, works certificate, PC measurement and evaluation software InfraWin
- Ordering information: Please check below PN
