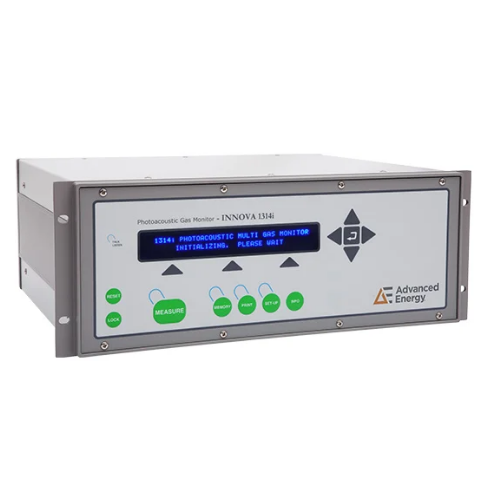

Advanced Energy Innova 1314i 红外光声谱气体监测仪 (60cm3)

  • 制造商: Advanced Energy
    Model: Innova 1314i
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




- Measurement Technique: Photoacoustic Infrared Spectroscopy
- Filter Capacity: Up to 5 + water from 27 different filter options
- Detection Limit: Gas dependent, but typically in the ppb region
- Repeatability: 1% of measured value
- Operating Temperature: 5 ~ 40°C (41 ~ 104°F)
- Storage Temperature: -25 ~ 55°C (-13 ~ 131°F)
- Dimensions (W x H x D): 483 mm x 175 mm x 375 mm (19" x 6.9" x 14.8")
- Weight: 14 kg (30.8 lb)
Pumping System Specifications:
- Pumping Rate: 30 cm3/s (flushing sampling tube) and 5 cm3/s (flushing measurement chamber)
- Total Internal Volume: 60 cm3 (of the measurement system)
- Power Requirement: 100 ~ 240 VAC ±10%, 50 and 60 Hz
- Power Consumption: ≈85 VA
- Monitor Interface: USB, Ethernet, and RS232
- Safety:
EN/IEC 61010-1 3rd Edition
CAN/CSA C22.2 No. 61010-1-04
UL 61010-1 3rd Edition
