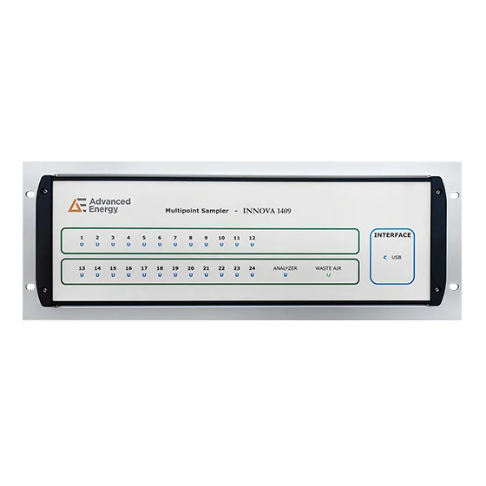

Advanced Energy Innova 1409 多点采样仪 (9.0ml)

  • 制造商: Advanced Energy
    Model: Innova 1409
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Sampling System:
- Pump Performance:
Small Pump: Distance: 0 ~ 75 m; Tube Ø: 3 mm; Speed: 4 m/s
Large Pump: Distance: 75 ~ 150 m; Tube Ø: 4 mm; Speed: 5 m/s
- Internal Volume:
1409-6: 3.6 ml
1409-12: 5.4 ml
1409-24: 9.0ml
Environmental:
- Operating Temperature: 5 ~ 40°C (41 ~ 104°F)
- Storage Temperature: -25 ~ 55°C (-13 ~ 131°F)
- Dimensions (W x H x D): 445 mm x 155 mm x 260 mm (17.5" x 6.10" x 10.2")
- Weight:
1409-6: 6.6 kg (14.6 lb)
1409-12: 7.9 kg (17.4 lb)
1409-24: 10.3 kg (22.7 lb)
Electrical:
- Power Requirement: 100 ~ 240 VAC 50 and 60 Hz
- Power Consumption: 0.4 A
- Included Accessories: Knurled nuts to secure tubing to nozzles (3xYM0652), USB interface cable (AS0001), Remote/offline software (BZ7007), Mains cable, Instruction manual
