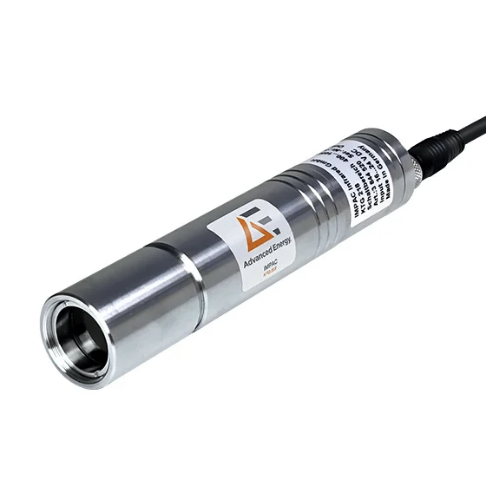

Advanced Energy KTG 218 红外热继电器 (400 ~ 1400°C)

- Temperature Range: 400 ~ 1400°C (752 ~2552°F)
- Spectral Ranges: 0.85 ~ 1.05 μm
- Measurement Uncertainty (ε =1, Tamb = 23°C): 0.75% of reading in °C
- Repeatability: 0.3% of temperature value (emissivity ε = 1)
- Optics (Measuring Distance): 170 mm, 220 mm, 400 mm, 600 mm, 800 mm, 1000 mm, 1400 mm, 1600 mm, 1800 mm, 2000 mm
- Sighting: LED targeting light
Electrical:
- Power Supply: 24 VDC (± 15%), 60 mA
- Switch Time: 600 μs
- Output: Switch voltage 20 V when exceeding the threshold, max 30 mA
Environmental
- Protection system: IP 65
- Ambient Temperature: 0 ~ 70°C (32 ~ 158°F)
- Dimensions (mm): 25 x 125 (Ø x l)
- Housing: Stainless steel
- CE Label: According to EU directives about electromagnetical immunity
