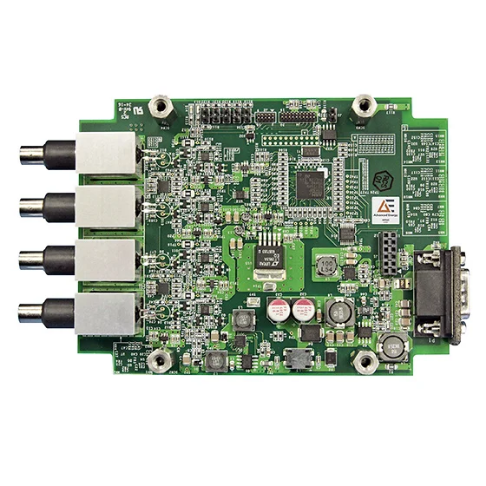

Advanced Energy Luxtron m924 Utility Fiber Optic Temperature Sensor (-30 ~ 200°C)

  • 制造商: Advanced Energy
    Model: Luxtron m924 Utility
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




- Temperature Range: -30 ~ 200°C
- Sampling Rate: Up to 50 Hz per channel
- Channels: 4 or up to 64 with RS485 Modbus
- Probe Type: Luxtron DipTip and Quality Probes
- Accuracy (No Calibration): ± 2°C (DipTip and Quality probes only)
- Noise: < 0.1°C, (1-sigma STD @ 1 Hz)
- Measurement Resolution (Digital Output): 0.01°C
- Average Power : 4 W
- Input Voltage: 5 ~ 24 VDC + 5%
Environmental
- Operating Temperature Range: -40 ~ 85°C
- Storage Temperature Range: -30 ~ 75°C
Relative Humidity: 80% RH (max) non-condensing
- Overall dimension (main board) (H x W x L): 23.7 x 100.6  x 134.4 mm
Communication
- Serial Communication: RS232 and RS485
- Protocol: ASCII (RS232) & Modbus (RS485)
