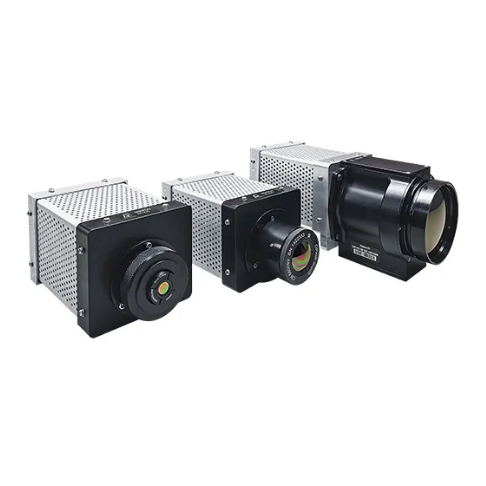

Advanced Energy MCL640HT 红外热像仪 (200 ~ 1600°C)

- Temperature Ranges: 200 ~ 1600°C (392 ~ 2912°F)
- Filter: 8 ~ 14 μm
- Measurement Accuracy: ±2°C or 2% of reading
- Image Update Rate: 9 Hz or 50 Hz
- A/D Resolution: 16 bit
- Pixel Pitch: 17 μm
- Emissivity Correction: 0.1 ~ 1.0
- Lens Options: 8° (75 mm); 14° (50 mm); 26° (25 mm); 57° (11 mm); 77° (8.2 mm)
Interface:
- Digital: Gigabit Ethernet
- Connections: 4-pin power (“pigtail” included), RJ45 Ethernet communication
Environmental:
- Operating Temperature: 0 ~ 50°C (32 ~ 122°F ) (at housing)
- Storage Temperature: -20 ~ 70°C (-4 ~ 158°F)
- Weight: 1 kg (2.55 lbs) (excludes any protective housing or optional lenses)
- Dimensions (without lens): 127 mm × 101.6 mm × 101.6 mm (5" × 4" × 4")
Electrical:
- Power Input: 12 VDC
- Power Consumption: 10 W
- Scope of delivery: Includes power connector with 30 mm pigtail, manual (electronic format), carrying case, and LumaSpec RT Viewer software.

Details

Datasheet
