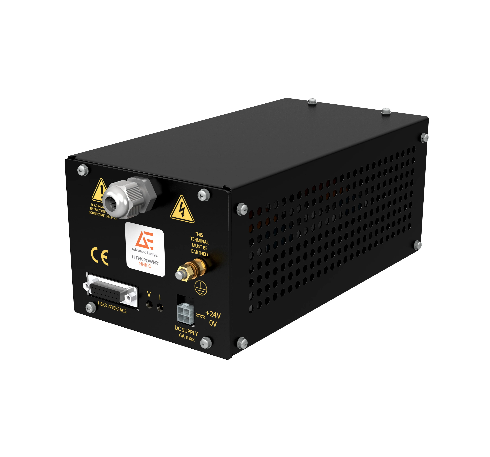

Advanced Energy MH100 Chassis-Mount Power Supply (5 ~ 50kV)

- Output Power: 100W max
- Output Voltage: 5 ~ 50kV depending on model
- Output Current: 0 ~ 20 mA depending on model
- Input Voltage: +24 VDC (±2 VDC)
- Input Current: 6 A max
- Ripple: < 0.1% peak to peak
- Voltage Regulation:
Line: < 0.01% for a 10% change in input voltage
Load: < 0.1% for 10% to full load
- Current Regulation:
Line: < 0.01% for a 10% change in input voltage
Load: < 0.1% for 10% to full load
- Temperature Coefficent: 200 ppm per °C over operating temperature range
- Stability: ±0.1% over an 8 h period after 30 min warmup
- Operating Temperature: 0 ~ 45°C (32 ~ 113°F)
- Storage Temperature: -20 ~ 6°C (-4 ~ 43°F)
- Humidity: 85% max relative humidity non-condensing
- Altitude: Sea level up to 2000 metres (6500 feet)
- Cooling: Free convection (no fan)
- Dimensions (W x D x H): 122 x 223 x 98.5 mm3 (4.8 x 9.25 x 3.88 in3) 
- Weight: 3 kg (6.6 lb)  
- Control Interface:
15-way female D-type connector 
