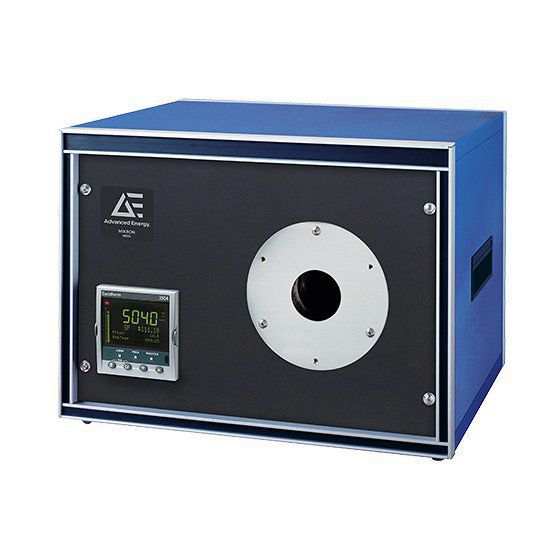

Advanced Energy Mikron M305 红外温度计校准器 (100 ~ 1000°C)

- Temperature Range: 100 ~ 1000°C (210 ~ 1832°F)
- Temperature Uncertainty: ±0.2% of reading ±1°C
- Temperature Resolution: 0.1°C
- Stability: 1°C per 8-hour period
- Source Non-Uniformity:
±0.2°C typical @ T < 230°C
±1°C typical @ T > 230°C
- Heated Cavity Shape: Spherical
- Exit Port Diameter: 25.4 mm (1.0”)
- Emissivity ε: 0.995 ±0.0005 (calculated from cavity shape)
- Effective Emissivity:
1.00 @ 8 ~ 14 μm T < 230°C
1.00 @ 0.7 ~ 1.8 μm T > 230°C
- Standard Calibration Method: Radiometric
- Temperature Sensor: Thermocouple
- Warm-up Time: 60 minutes from ambient to 700°C
- Slew Rate to 1°C Stability:
~11°C per min for Amb < T < 200°C
~20°C per min for Amb < T < 800°C
~10°C per min for T > 900°C
- Slew Rate to 0.1°C Stability: 1 hour between setpoints
Environmental
- Operating Ambient Temp: 0 ~ 44°C (32 ~ 110°F)
- Cooling: Fan cooled, air inlet on top panel
- Operating Humidity: 90% RH max, non-condensing
- Dimension (H x W x D): 270 mm x 430 mm x 370 mm (10.6" x 16.9" x 14.6")
- Weight: 25 kg (55 lbs)
- CE Certified: Yes
Communication and Electrical Specifications
- Remote Set Point: Via serial port
- Method of Control: Digital self tuning PID controller
- Power Requirements: 230 VAC @ 50 and 60 Hz, 1000 W
Optional Accessories
Cold aperture wheel assembly, 6 apertures 25.4 to 2.54 mm - 14002-1
Cold aperture wheel assembly, 6 apertures 50 to 1.56 mm - 14002
IGA 12-TSP, 1570 nm, 200” 1020°C, through-lens-sighting, laser targeting, focusable Optics 2- 3840810

Serial Communication Output RS485 (built-in ex works) -  19140-485
