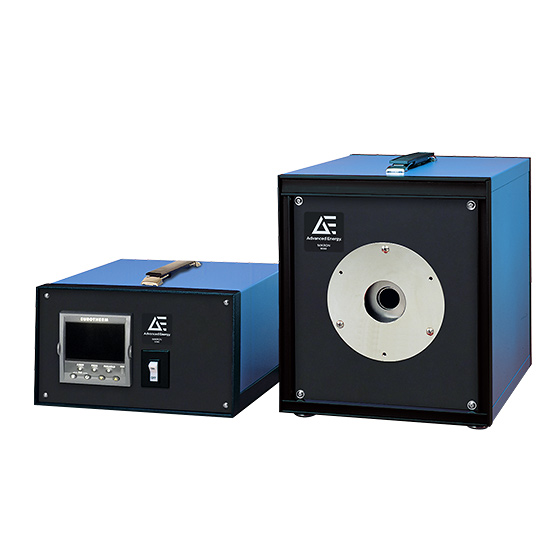

Advanced Energy Mikron M360 红外温度计校准器 (50 ~ 1100°C)

- Temperature Range: 50 ~ 1100°C (122 ~ 2012°F)
- Temperature Uncertainty: ±0.2% of reading ± 1°C
- Temperature Resolution: 0.1°C
- Stability: 1°C per 8-hour period
- Source Non-Uniformity:
±0.2°C typical @ T < 230°C
±1°C typical @ T > 230°C
- Heated Cavity Shape: Spherical
- Exit Port Diameter: 25 mm (1”)
- Emissivity ε: 0.995 ±0.0005 (calculated from cavity shape)
- Effective Emissivity:
1.00 @ 8 ~ 14 μm T < 230°C
1.00 @ 0.7 ~ 1.8 μm T > 230°C
- Standard Calibration Method: Standard: Radiometric (pyrometric)
- Temperature Sensor: Precision platinum RTD 1/3 DIN
- Warm-up Time: 60 minutes from ambient to 700°C
- Slew Rate Typical:
≈11°C / min for Amb < T < 200°C
≈20°C / min for Amb < T < 800°C
≈10°C / min for T > 900°C
- Slew Rate to 0.1°C Stability: 1 hour between setpoints
Environmental
- Operating Ambient Temp: 0 ~ 44°C (32 ~ 110°F)
- Cooling: Fan cooled, air inlet on top panel
- Operating Humidity: 90% RH max, non-condensing
- Dimension (H x W x D):
Blackbody: 345 mm x 277 mm x 425 mm (13.6" x 10.9" x 16.75")
Controller module: 168 mm x 280 mm x 280 mm (6.6" x 11"x 11")
- Weight:
Blackbody: 17.8 kg (39.3 lb)
Controller module: 4.86 kg (10.7 lb)
- CE Certified: Yes
Communication and Electrical Specifications
- Remote Set Point: Via serial port
- Method of Control: Digital self-tuning PID controller
- Power Requirements: 230 VAC @ 50 and 60 Hz
Accessories
Serial Communication Output RS485 (built-in ex works)
IGA 12-TSP, 1570 nm, 200" 1020°C, through lens sighting, laser targeting, focusable Optics 2
IGA 12-TSP, 1570 nm, 250" 1400°C, through lens sighting, laser targeting, focusable Optics 2

Details

Datasheet
