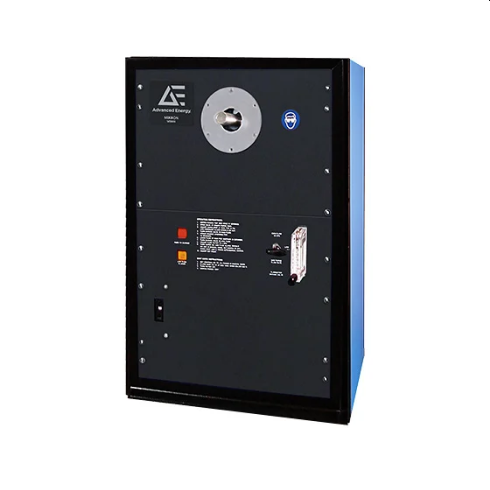

Advanced Energy Mikron M390S 红外测温仪校准器 (600 ~ 3000°C)

- Temperature Range: 600 ~ 3000°C (1112 ~ 5432 °F) Custom split design
- Temperature Uncertainty: ±0.25% of reading ±1°C
- Temperature Resolution: 1°C
- Stability: ±1°C
- Source Non-Uniformity: Non-uniformity: ±0.1% ± 1°C of reading within the center ½ of diameter
- Heated Cavity Shape: Closed end graphite tube 292 mm (11.5”) long with approximately 127 mm (5”) heated length (field replaceable)
- Exit Port Diameter: 25 mm (1”)
- Emissivity ε:
1.0 (effective from 0.6 ~ 1.8 μm)
≈0.96 (effective from 3 ~ 15 μm)
- Standard Calibration Method: Standard: Radiometric
- Temperature Sensor: Custom infrared thermometer Impac IGA 6
- Warm-up Time: 5 minutes from 600 ~ 2300°C, typical
- Slew Rate to 1°C Stability:
~325°C / min 600 ~ 1100°C
~700°C / min T > 1100°C
Communication and Electrical Specifications:
- Remote Set Point: RS232 serial communication output standard, RS485 optional
- Method of Control: Digital PID controller
- Power Requirements: 208 ~ 240 VAC @ 50 and 60 Hz, 24 KVA, 1 Phase
- Power Connector (Customer Supplied): Must use plug that complies with IEC-309 @ 110 Amps
Environmental
- Operating Ambient Temp: 0 ~ 44°C (32 ~ 110°F)
- Cooling: Water cooled. Standard (garden) hose connections on rear, 3.8 lpm (1 gpm minimum, 2 gpm recommended)
- Cooling Inlet Pressure: 90 PSI (621 kPa) maximum. Customer is responsible to provide pressure safety valves at inlet and outlet. Outlet (drain) must not be blocked
- Purge Gas: Argon High Purity (99.99% pure)
- Purge Gas Inlet Pressure: 25 PSI (172 kPa) maximum. Customer is responsible to provide over pressure safety valves at inlet
- Operating Humidity: 0 ~90% RH non-condensing
- Dimensions (H x W x D):
Blackbody: 876 x 559 x 978 mm (34.5 x 22 x 38.5 in)
Controller: 195 x 432 x 576 mm (7.67 x 17 x 22.66 in)
- Weight:
Main Cavity: ≈177 kg (390 lb)
Controller: ≈4.6 kg (10.2 lb)
- CE Certified: Yes
