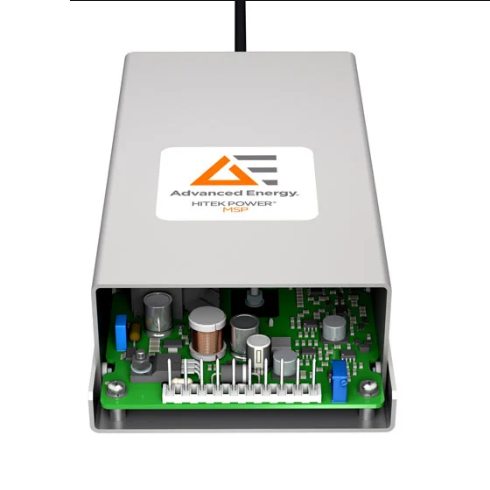

Advanced Energy MSP-102 Mass Spectrometry Power Supply (1 ~ 5 kV)

- Output Power: 10 W, max
- Output Voltage: 1 ~ 5 kV
- Output Current: 0.4 ~ 10 mA
- Input Voltage: +24 VDC ±10%
- Input Current: 1 A, max
- Line Regulation: < 10 ppm over specified input range
- Load Regulation: < 10 ppm for 10 ~ 100% load change
- Ripple: < 4 ppm (5 kV unit)
- Voltage Control:
0 ~ +10 V = 0 ~ 100 %, accuracy ±2%
Can also be controlled by internal or external potentiometer (See connection details.)
- Current Control: Fixed at approximately 110 ~ 130% of max
- Voltage Monitor: 0 ~ +10 V = 0 ~ 100%, accuracy ±2%
- Current Monitor: 0 ~ +10 V = 0 ~ 100%, accuracy ±2%
- Stability: < 0.002% (20 ppm) in 15 minutes, < 0.01% (100 ppm) in eight hours (after one hour warmup)
- Temperature Coefficient: 25 ppm/°C at max output voltage (tested with external voltage control)
(Optional 10 ppm /°C)
- Protection: The units are fully protected against short circuit and intermittent arcs to ground
Environmental
- Cooling: Convection cooled
- Operational Temperature: 10 ~ 50°C (50 ~ 122°F)
- Storage/Transport Temperature: -20 ~ 85°C (-4 ~ 185°F)
- Altitude: Sea level to 2000 m (6500')
- Humidity: 80% max relative humidity up to 31°C (88°F), reducing linearly to 50% at 40°C (104°F); non-condensing
Physical
- Dimensions (W x H x D): 98 mm (3.9 in) x 47 mm (1.9 in) x 147 mm (5.8 in)
- Weight (Approx.): 0.8 kg (1.8 lb)
- Interface: 10-way connector, control via internal or external potentiometer
- Output cable: Unterminated URM76; 1 m (3.3 ft) screened output cable
- Construction: Aluminium, clear non-chrome passivate finish
