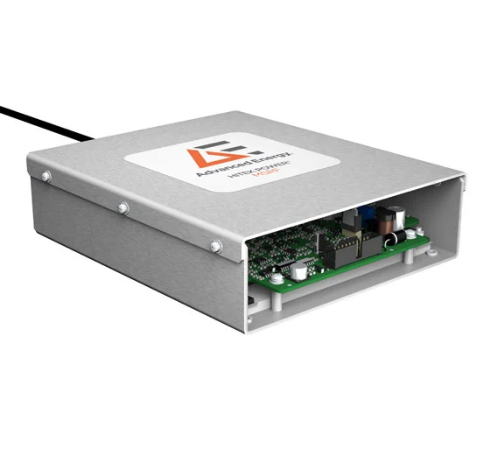

Advanced Energy MSRF 质谱电源 (±2.5 ~ ±10kV)

- Output Power: 3.2 W, max
- Output Voltage: ±2.5 ~ ±10kV
- Output Current: 0.3 ~ 0.5 mA
- Input Voltage: +24 VDC ±10%
- Input Current: 1 A, max
- Line Regulation: < 10 ppm for a 1 V input voltage change
- Load Regulation: < 10 ppm for a 10 to 100% load change
- Ripple: < 400 mV to < 1 V, depending on model
- Voltage Control: 0 ~ +10 V = 0 ~ 100 %, accuracy ±2%
- Current Control: Fixed at approximately 110 ~ 130% of max
- Voltage Monitor: ±10 V = +100 ~ -100%, accuracy ±2%
- Current Monitor: ±10 V = +100 ~ -100%, accuracy ±2%
- Polarity Control:
Low < 0.8 V = Negative
High > 3.5 V or open = Positive
- Inhibit:
Low < 0.8 V = Enabled
High > 3.5 V or open = Inhibited
- Stability: < 0.01% per hour, 0.05% in eight hours (after one hour warmup)
- Temperature Coefficient: 10 or 25 ppm per °C at max output voltage (tested with external voltage control)
- Protection: The units are fully protected against over voltage, short circuit and intermittent arcs to ground.
- Cooling: Convection cooled
- Operational Temperature: 10 ~ 50°C (50 ~ 122°F)
- Storage/Transport Temperature: -20 ~ 85°C (-4 ~ 185°F)
- Operational Altitude: Sea level to 2000 m (6500')
- Storage/Transport Altitude: Sea level to 18,000 m (59,055')
- Reliability: MTBF > 50,000 hours
- Humidity: 80% max relative humidity up to 31°C (88°F), reducing linearly to 50% at 40°C (104°F); non-condensing (ref. EN61010-1)
- Options: A control option can be supplied with a bipolar input voltage program of ±10 V without the polarity control signal. Please consult our sales team for part numbering for this option.
- Switching: Settle to 99%, ±2.5 kV < 20 mS, ±5 kV < 20 mS, ±8 kV < 30 mS, ±10 kV < 30 mS
- Dimensions: 159 mm x 182 mm x 47 mm (6.25" x 7.16" x 1.85")
- Weight: 1.5 kg (3.3 lb)
- Casing: Aluminum, clear non-chrome passivate finish
- Output Cable: Unterminated URM76; 1 m (3.3') of screened output cable
- Connectors: Various options are available upon request.
