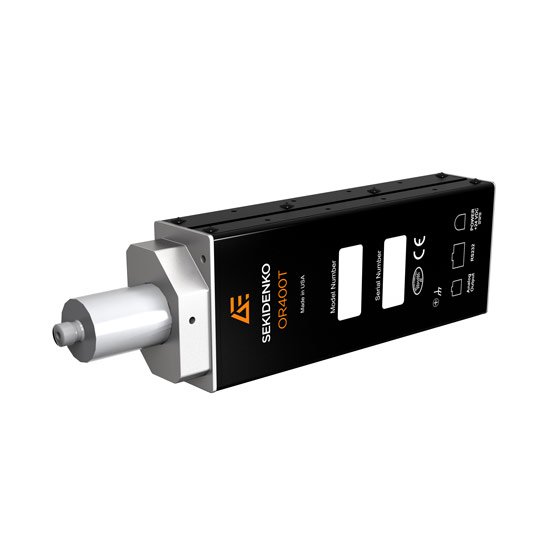

Advanced Energy OR400T Single-channel Optical Fiber Thermometer (50 ~ 3500°C, single-channel)

- Temperature Range: 50 ~ 3500°C
- Filter Range: 600 ~ 1600 nm
- Read Rate:
Up to 20Hz temperature read rate
- Accuracy: ±1.5°C
- Resolution: 0.001°C
- Control/Repeatability: ±0.1°C typical
- Display: None; set up via RS-232
- Data I/O: RS-232 @ up to 115 KB
- Analog Output: 0 ~ 10 V or 4 ~ 20 mA outputs
- Power Requirements:
AC: 90 ~ 263 VAC, 47 ~ 63 Hz
DC: +24 VDC
- Environmental: Operational: 10 ~ 40°C (50 ~ 104°F)
- Physical Dimensions:
55.7 mm (H) x 31.8 mm (W) x 195.2 mm (D)
2.2" (H) x 1.3" (W) x 7.7" (D)
- Weight: 0.73 lb (0.33 kg)
- Power Supply Line Current: <0.7 A @ 100 VAC
