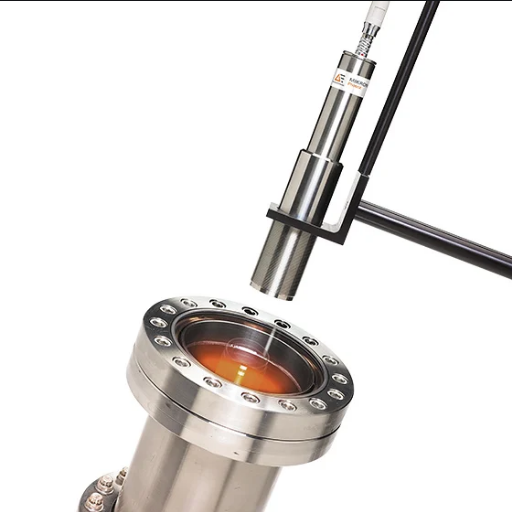

Advanced Energy PhotriX 红外测温仪 (30 ~ 2600°C)

  • 制造商: Advanced Energy
    Model: PhotriX
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




- Temperature Range: 30 ~ 2600°C (86 ~ 4712°F)
- Spectral Ranges:
0.65 μm
0.88 μm
0.9 μm
1.55 μm
0.7 ~ 1.65 μm
- Measurement Uncertainty: ±1.5°C or 0.15% oR
- Repeatability: 0.1°C
- Optics: Fixed optics, lightpipe, or fiber optics with fixed optics or lightpipe
- Field of View: min 0.5 mm
- Ambient Temperature: 10 ~ 60°C (50 ~ 140°F)
- Weight:
Lightpipe: 310 g (~0.68 lb)
Lens: 500 g (~1.10 lb)
- Power: 110/220 VAC, 50 Hz and 60 Hz (also accepts 10 ~ 30 VDC)
- Response Time: User adjustable up to 1 ms
- Scope of Delivery: Pyrometer and collection optics with user manual, DIN-rail mount Communications Interface Module (CIM), Electrical cable (4 m) to connect instrument to CIM, RS232 cable (3 m) to connect CIM to PC, Power supply (standard system includes a universal AC/DC power supply, but CIM can be powered directly with 12 VDC) and North American line cord, PC software included.

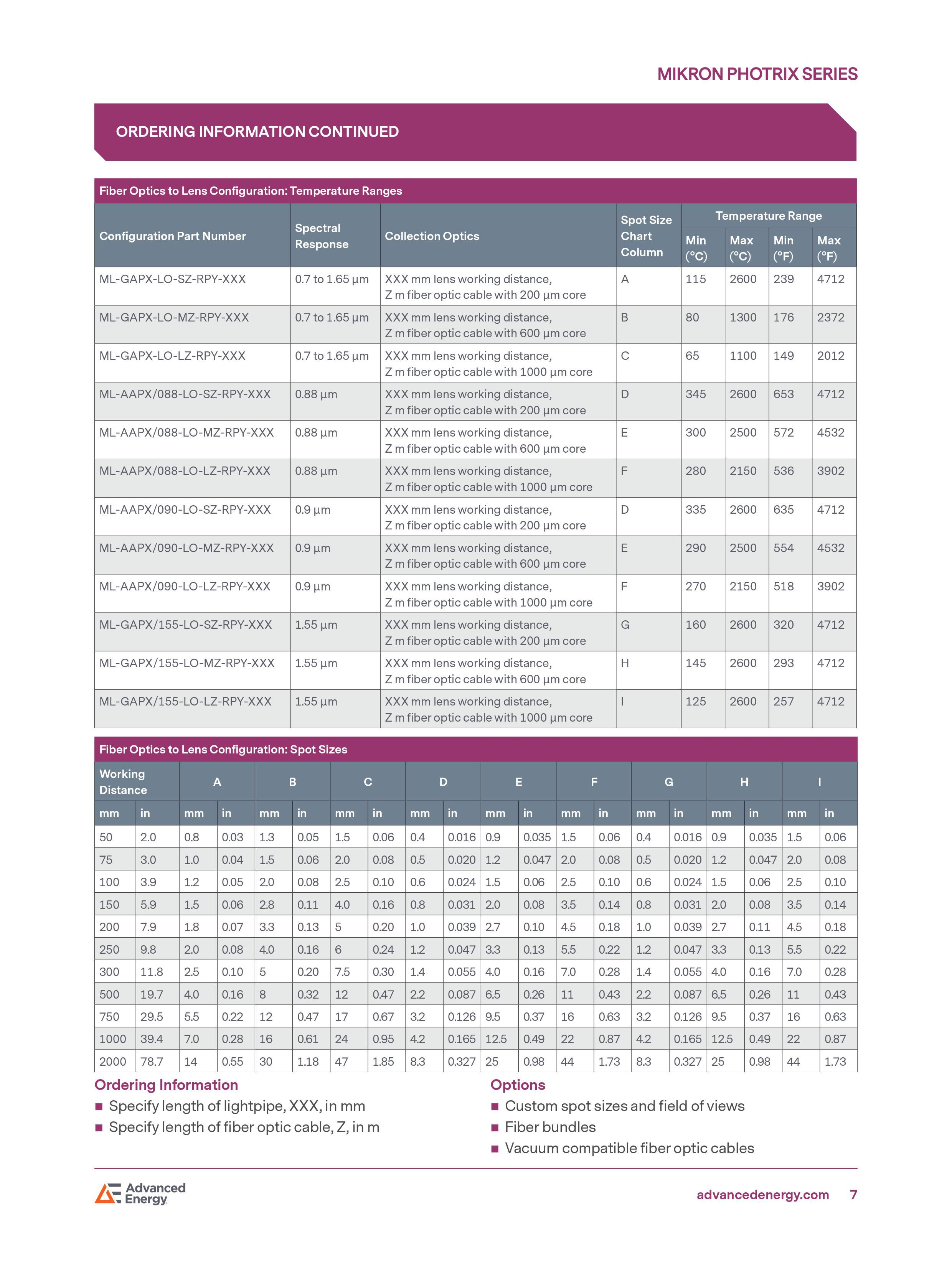

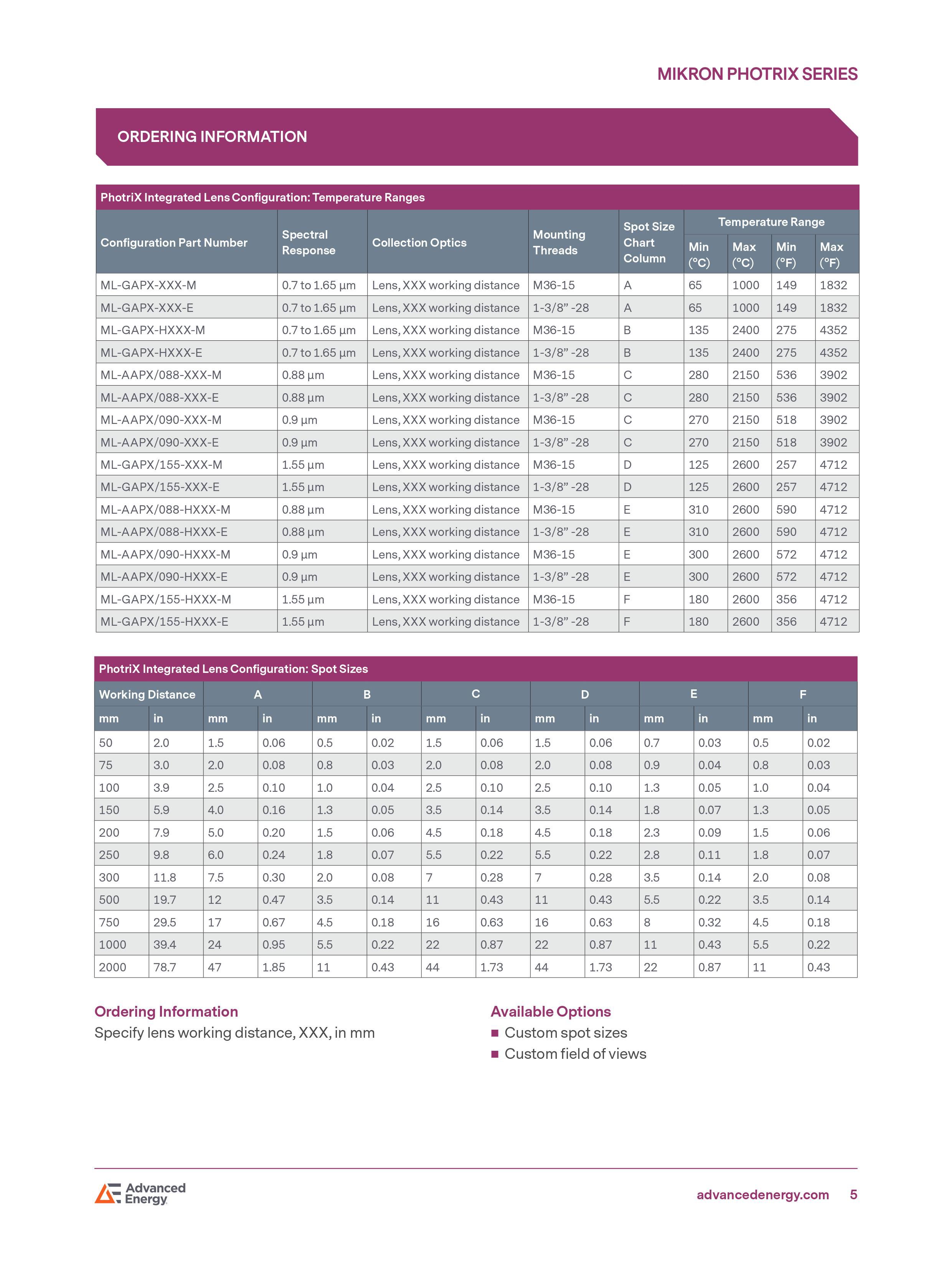

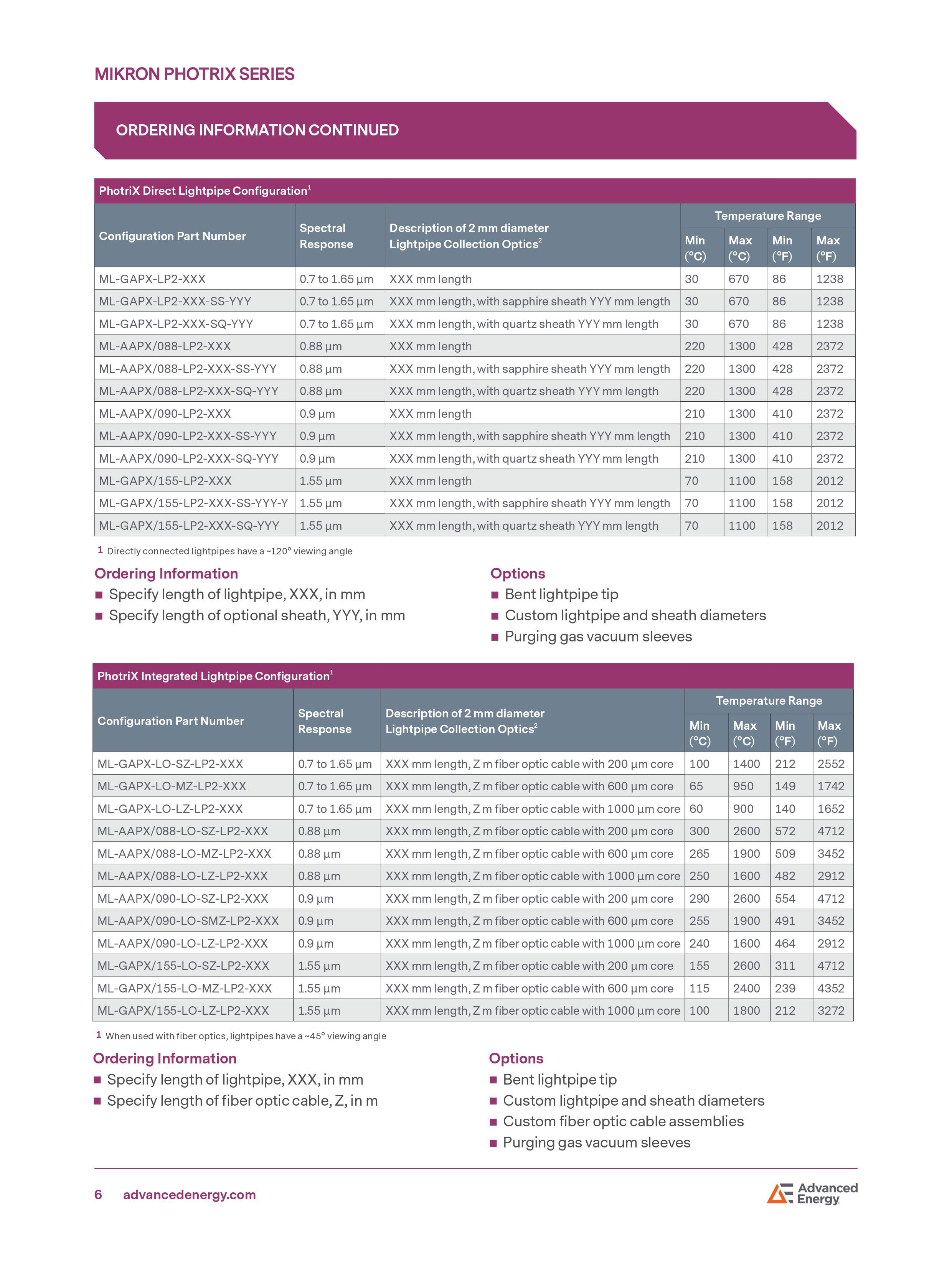

- Ordering information: Please check below PN
