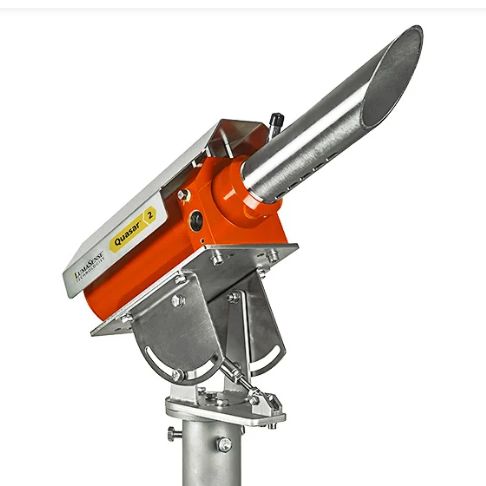

Advanced Energy Quasar 2 红外温度计 (400m, 4/ 20 mA)

- Working Distance: 400m (1320')
- Field of View:
Available in 37.5:1, 60:1, 75:1, 150:1 and 300:1
Targeting port for target alignment
- Output Signal: 4 or 20 mA switched output (4 mA = flame and 20 mA = no flame)
- Response Time: 10 mS
- Alarm Output Delay: 2 s ~ 2 min (Std)
Electrical:
- Power Requirements:
5 Watts
24 VDC and 115 VAC / 230 VAC
Environmental:
- Ambient Temperature Limits: -40 ~ 60°C with no cooling
Physical Characteristics:
- Dimensions: 12 cm x 33 cm x 12 cm (4.7 in x 12.8 in x 4.7 in)
- Weight: 12 kg (26.5 lbs)
- Status Lights: Green (Flame) and red (No Flame)
- Intensity Indicator: 20 LEDs bar
- Mounting: M-4 heavy duty 360° swivel mount
- Housing: Stainless steel (316 L), tube dia. 114 mm, IP 66
