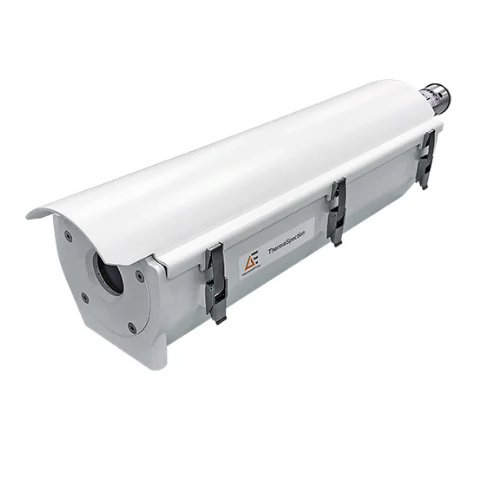

Advanced Energy 微辐射热计摄像机 (-40 ~ 120°C)

  • 制造商: Advanced Energy
    Model: ThermalSpection CVM
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




- Temperature and Spectral Range: -40 ~ 120°C (-40 ~ 248°F) and 0 ~ 500°C (32 ~ 932°F)
- Measurement Accuracy: ±2% oR or 2°C
- Field of View (H x V): 14° x 10°, 26° x 20°, 57° X 43°, 77° x 58°
- Pixel Pitch: 17 μm
- Emissivity Correction: 0.1 ~ 1.0
- Image Update Rate: 9 Hz or 50 Hz
- A/D Resolution: 16 bit
- Lens Focal Length (H x L x W): 175 mm x 772 mm x 207 mm (6.89" x 30.39" x 8.15")
- Weight: ≈11 kg (25 lb)
Interface and Electrical:
- Communication: Gigabit Ethernet
- Power Supply: Universal AC input standard (DC optional)
Environmental:
- Operating Temperature: 0 ~ 60°C (32 ~ 140°F)
With optional heater: -40 ~ 60°C (-40 ~ 140°F)
- Storage Temperature: -20 ~ 70°C (-4 ~ 158°F)
