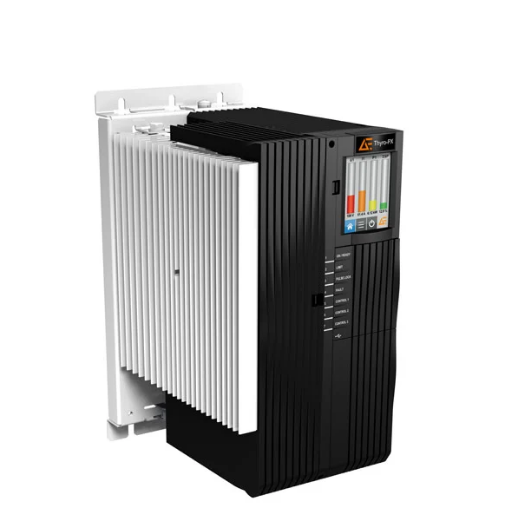

Advanced Energy Thyro-PX Thyro Power Controller (16 ~ 2900A)

  • 制造商: Advanced Energy
    Model: Thyro-PX
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




- Phase Type: 1, 2, and 3-phase power controller
- Accuracy:
±0.5% voltage or current
±1% power
- AC Input Line Voltage Rating:
230 ~ 500 V [-20 ~ +10%]
690 V [-20 ~ +10%]
- Current Range: 16 ~ 2900A
- Frequency: All types, 45 ~ 65 Hz
Environmental:
- Ambient Temperature:
Up to 35°C (95°F) by external fan cooling (for F types, with integrated fan) with rated current
Up to 45°C (113°F) by passive convection cooling with rated current
- Storage Temperature: -25 ~ +55°C (-13 ~ 131°F)
- Humidity Class: DIN EN 50178 Tab. 7
- Communications:
Ethernet/IP®, EtherCAT®
PROFIBUS®, PROFINET®
Modbus RTU®, Modbus TCP/IP®
DeviceNET™
