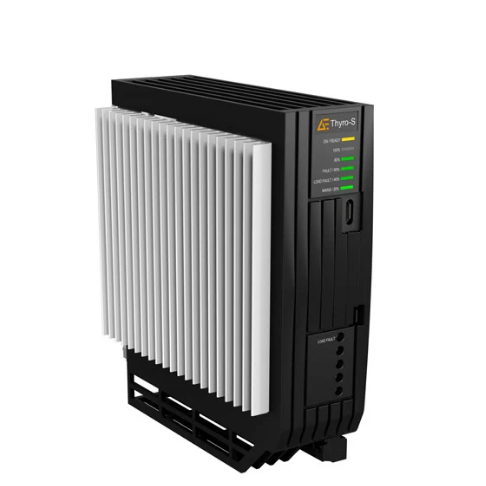

Advanced Energy Thyro-S Thyro Power Controller (8 ~ 350A)

- Phase Type: 1, 2, and 3-phase power controller
- AC Input Line Voltage Rating:
230V ~ 500V [-57% ~ +10%]
or 230V ~ 500V [-15% ~ +10%]
- Current Range: 8 ~ 350A
- Frequency: For all types from 47 ~ 63 Hz. Max frequency change 5% per half-wave
Environmental:
- Ambient Temperature:
Up to 35°C (95°F) by external fan cooling (for F types, with integrated fan) with rated current
Up to 45°C (113°F) by passive convection cooling with rated current
- Storage Temperature: -25 ~ +55°C (-13 ~ 131°F)
- Humidity: 5% ~ 95% relative humidity
- Communications:
Ethernet/IP®, Profibus®, Profinet®, Modbus RTU®, Modbus TCP/IP®, DeviceNET™,CANopen®
