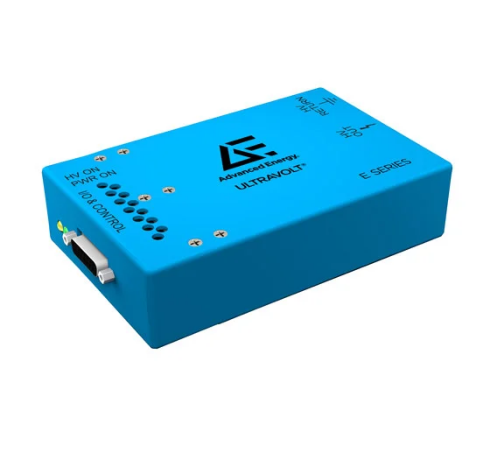

Advanced Energy UltraVolt 6E Chassis-Mount Power Supply (6000VDC, 30W)

Input
- Voltage Range: Full Power, +23 ~ 30VDC
- Current: Standby/Disable, < 50 mA
- Current: No Load, Max Eout, < 325 mA
- Current: Full Load, Max Eout, 2.5A
- AC Ripple Current: Nominal Input, Full Load, < 10mA pk to pk
Output
- Voltage Range: Nominal Input, 0 ~ 6000VDC
- Nominal Input Voltage/Model: 24VDC
- Power: Nominal Input, Max Eout, 4, 20, 30W
- Current: Iout Entire Output Voltage Range: 0.67, 3.3, 5mA
- Voltage Monitor: Normal Operating Conditions, 0 ~ 10 ±0.5%VDC
- Current Monitor Normal Operating Conditions 0 ~ 10 ±0.5%VDC
- Ripple: Full Load, Max Eout, ≤ 10ppm
- Line Regulation: Nom Input, Max Eout, Full Power, < 25 ppmVDC or < 10 ppmVDC
- Static Load Regulation: No Load to Full Load, Max Eout, < 25 ppmVDC or < 10 ppmVDC
- Stability: 30 Min Warmup, Per 8 h, Per Day,  25 ppmVDC or < 10 ppmVDC
Programming and Controls
- Input Impedance: Nominal Input, 10MΩ
- Adjust Accuracy and Adjust Linearity: 10 ~ 100%, ±0.05%
- Adjust Voltage: Differential, 0 ~ +10VDC
- Output Voltage: T = +25°C, Initial Value, +10.00 ±0.05%VDC
- Max Source Current: T = +25°C, 5mA
- Enable/Disable: 0 ~ +0.8VDC disable, +2.5 ~ 10VDC enable (default = disable)
Environmental
- Operating: Full Load, Max Eout, Case Temp. +10 ~ +45 °C
- Temperature Coefficient: Over the Specified Temperature, ±25 ~ ±10ppm/°C
- Storage: Non-Operating, Case Temp. -55 ~ +105°C
- Humidity: All Conditions, Standard Package, 0 ~ 95%, non-condensing
- Altitude: Standard Package, All Conditions, Sea level through 10,000ft
- Volume: 561.9 cc (34.29 in3)
- Weight: 1.1 kg (2.4 lb)
- Tolerance:
Overall ±1.27 mm (0.030")
- Interface: Analog, -I10 interface
- Options & Accessories:
Cables and Connectors, Temperature Stability
