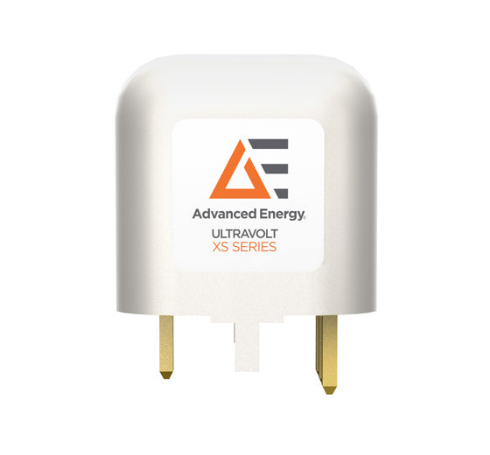

Advanced Energy UltraVolt XS Micro-Size High Voltage Power Supply (0.1kVDC/ 0.1W)

  • 制造商: Advanced Energy
    Model: UltraVolt XS
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




- Input Voltage Vin (Pins 1 and 2): 5 VDC ±0.5 (recommended) max: 12 VDC (reverse: -0.2 V)
- Input Current:
For 0 V output voltage: < 1.6 mA
For 100 V, no load: < 3mA
At full output voltage, full load: < 50mA
- HV Output Vout (Pin 4): 0 ~ 100VDC programmable
- Output Power: 0 ~ 100mW
- Polarity: Fixed positive or negative
- HV Setting (Pin 3):
Via external voltage source 0/2.5 V
Accuracy: ±2% at full scale
- Max Output Current Iout: 1mA nominal
- Load Voltage Regulation: ±0.01% of full output voltage for no load to full load
- Line Voltage Regulation: ±0.01% of full output voltage over specified input voltage range
- Residual Ripple: < 50 mV pk~ pk — ripple can be reduced to < 10 mV by adding an external 100 nF small CMS capacitor
- Temperature Coefficient: < 50PPM/°C
- Output HV Monitoring: N/A
- Output Reference Voltage: N/A
- HV Power ON/OFF: N/A
- Operating Temperature: -10 ~ +65°C, full load, max Eout, case temp.
- Storage Temperature: -10 ~ +70°C
- Safeguards:
Output current internally limited
Soft start feature: low overshoot
- Shielding: Ground return is to metal enclosure
- Construction:
Casing: Steel, tin-plated, thickness 0.5 mm (0.02")
Insulation: Fully potted in RTV
- Pins:
Gold-plated: 0.63 mm (0.025") square
Length: > 2 mm (0.079")
Spacing: 2.54 mm (0.1")
- Volume: 1.331 cc (0.081 in3)
- Weight: 5 g (0.176 oz)
- Interface: Analog (positive or negative polarity)
