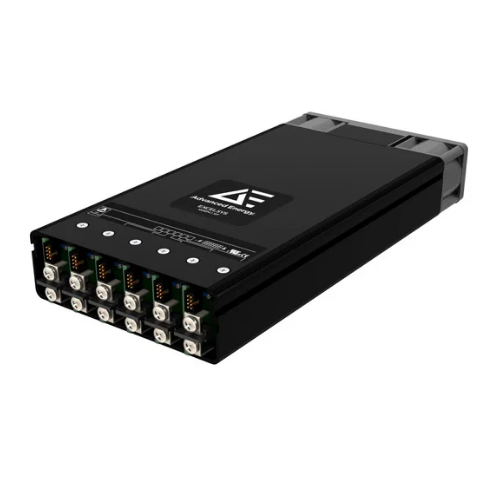

Advanced Energy XFN Low Voltage Power Supply (1000W, -40~+70°C)

Input
- Input Voltage Range: Input frequency: 47 ~ 440 Hz.
85~264 VAC
120~380 VDC
- Power Rating: 1000W Max
- Input Current: 85 VAC in 765 W out, 11.5A
- Inrush Current 230 VAC @ 25°C: 25A
- Undervoltage Lockout: Shutdown, 65 ~ 74 VAC
- Fusing: 250V, F12A HRC
Output
- Load and Cross Regulation: For 25% ~ 75% load change, ±0.2%
- Line Regulation: For ±10% change from nominal line, ±0.1%
- Output Isolation: Output to output/output to chassis, 500/500VDC
General:
- Isolation Voltage:
Primary to secondary: 3000VAC Min
Input to chassis: 1500VAC Min
- Efficiency: 230 VAC, 1000 W @ 24V, 90% Nom
- Bias Supply: Always on, current 250 mA, 4.8VAC Min, 5.0VDC Nom
Environmental
- Operating Temperature: -55 ~ +70 °C
- Storage Temperature: -40 ~ +70 °C
- Relative Humidity: Non-condensing, 5 ~ 95 %RH
- Altitude: Operational: 2000 m, Storage: 8000 m
- Dimension (L x X x H): 268 mm x 127 mm x 1U
- Weight: 1.7 kg
