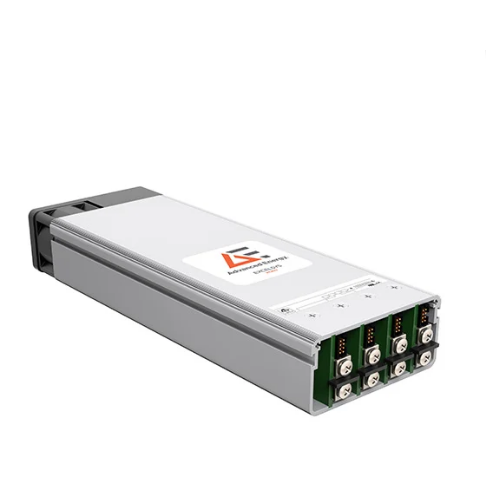

Advanced Energy XQ 电源低压 (200W~600W)

  • 制造商: Advanced Energy
    Model: XQ
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




- Input Voltage Range: Universal input 47 ~ 440 Hz: 85~264 VAC
120~380 VDC
- Power Rating:
XRA:200W, XRB:400W, XRC:600W
- Input Current:
XRA: 85VAC in 200W out, 4.5 A
XRB: 85VAC in 400W out, 5.5 A
XRC: 85VAC in 400W out, 7.5 A
- Inrush Current: 230 VAC @ 25°C: 50A
- Undervoltage Lockout: Shutdown, 65 ~ 74 VAC
- Fusing:
XRA: 250V 5 x 20mm, F5A HRC
XRB: 250V 5 x 20mm, F6.3A HRC
XRC: 250V 5 x 20mm, F8A HRC
Output
- Line Regulation: For ±10% change from nominal line, ±0.1%
- Load Regulation: For 25% ~ 75% load change, ±0.2 %
- Ripple and Noise: 20MHz 100mV or 1.0% pk-pk
General:
- Isolation Voltage:
Input to output: 4000VAC
Input to chassis: 1500VAC
- Efficiency: 230VAC, 600W @ 24V, 89% Nom
- Leakage Current: 250VAC, 60Hz, 25°C, 300μA
- Bias Supply: Always on, current 250mA. 500mA option available, 4.8~5.2VDC
Environmental
- Operating Temperature: -20 ~ +70 °C
- Storage Temperature: -40 ~ +85 °C
- Relative Humidity: Non-condensing, 5 ~ 95 %RH
