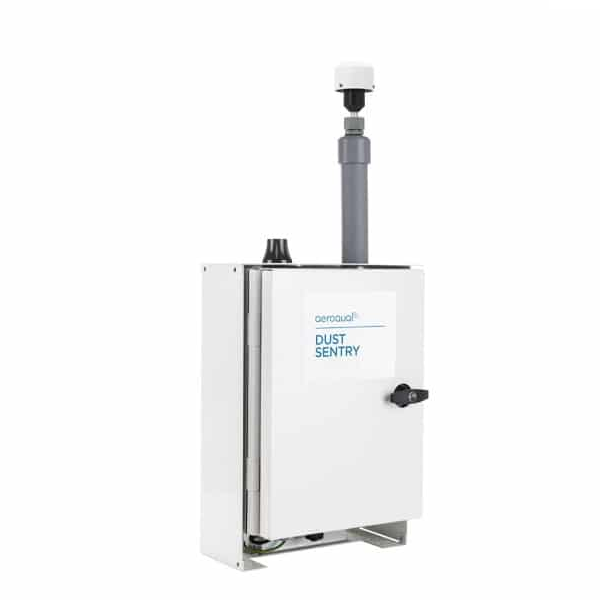

Dust Sentry TSP Aeroqual 灰尘检测装置

  • 制造商: Aeroqual
    Model: Dust Sentry TSP
    来源: New Zealand
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Particle Module: Nephelometer

Sizes: PM1, PM2.5, PM10 or TSP

Range: 0 to 60,000 μg/m3

Accuracy: <±(2 μg/m3 + 5 % of reading)

Resolution: 0.1 ug/m3

Lower Detectable Limit (2σ): <1 μg/m3

System Specifications

Control System: Embedded fanless PC (Intel Celeron® N3350, 1.1GHz, dual core, 4GB RAM, 32GB SSD hard drive), Ubuntu Linux Operating System

Communications: Standard: WIFI, Ethernet (LAN) Optional modem: Cellular IP 3G HSPA or 4G LTE

Aeroqual Connect instrument operating system.

Aeroqual Cloud instrument monitoring, management and technical support via secure cloud servers, accessed via web browser (IE,

Firefox, Chrome, Safari).

Software:

• Cloud standard features; configuration, calibration, diagnostics, remote technical support.

• Cloud optional features; text (SMS) and email alerts, 3rd party sensor measurements, full data visualisation with charts, wind and

pollution roses, data reporting with auto data export via FTP and API, full instrument event journal capture.

Data logging: 32GB Hard Drive (> 5 years data storage)

Outputs: 2 x Relay (optional), 4 x 4-20mA (optional)

Averaging period: 1 min, 5 min, 10 min, 15 min, 20 min, 30 min, 1 hr, 2 hr, 4 hr, 8 hr, 12 hr, 24 hr

Power requirements 100-260 VAC (standard): 30W / 24.7W, Regulated 12 VDC (if required): 33W / 27.2W

Enclosure: Lockable IP65 GRP cabinet with integrated aluminumsolar shield armor

PM Sampling System:

Inlet: Omni-directional 36 cm(14.1 inches) heated inlet; Optional sharp cut cyclones for PM10, PM2.5 or PM1 size selection

Pump: 12 V brushless DC diaphragm

Optics: 670 nm laser, near-forward scattering nephelometer with sheath air protection

Dimensions: 483H x 330W x 187D mm (19 H x 13 W x 7.4 D inches) Includessolar shield armor& mounting brackets

Weight: < 13 kg (28.6 lbs)

Environmental operating range: -10 °C to +50 °C (14 °F to 122 °F)

Mounting 47mm Sample Filter (Optional): Pole, tripod and wall mounting brackets included 47mm filter for particle loading analysis

Factory Integrated & Tested Sensors (Optional):

Gill WindSonic (ultrasonic wind sensor), Vaisala WXT536 (weather transmitter), Met One MSO (weather transmitter), Cirrus MK427 Class 1 (noise sensor), Novalynx Pyranometer(solar radiation), BSWA 308 (sound level meter) Met-One BC-1060 (black carbon monitor), Met-One

E-BAM PLUS (Beta-Attenuation Mass Monitor)

Details

Datasheet


Manual
