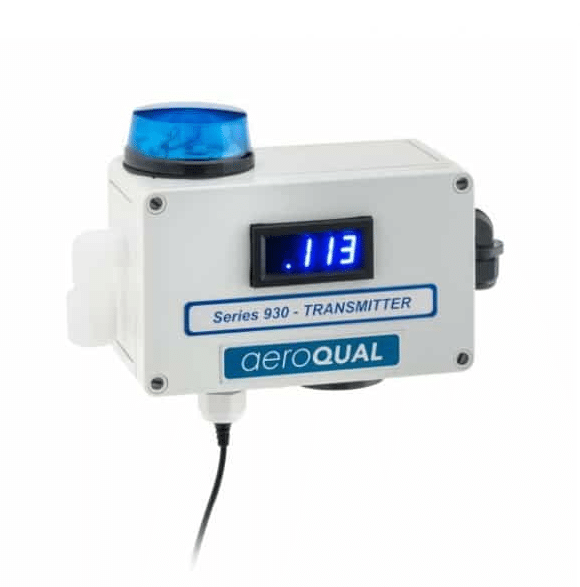

Series 930 Aeroqual 固定式气体监测仪

  • 制造商: Aeroqual
    Model: Series 930
    来源: New Zealand
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Applications: Industrial applications for gas leak detection, real-time network monitoring, health and safety and process control.

Measurement units: Gas: ppm or mg/m3 | Optional: Humidity: %; Temperature: °C or °F

Reading functions: Instant, minimum, maximum, average

Sensor head type: Sensor head Replaceable/ Removable

Sampling method: Active sampling via internal sensor head fan

Analog output: 4-20 mA (opto-isolated), 12-24 Vdc

External signal type: Transistor output (4) (24 Vdc at 150 mA max)

External signal functions: Low Alarm | High Alarm | Control | Diagnostics

External signal input: Standby toggle

Connectors: Screw type

Monitor Identification (ID): 1 (Default) User configurable from 1 to 255

Alarm set points: User configurable Low Alarm | High Alarm

Control set point: User configurable Low Alarm | High Alarm

Communication: RS-485 (Aeroqual proprietary protocol)

Software: Free PC Configuration software and logging; Link data to a specific location and monitor (Data cable required)

Interface (optional): RS-485 to USB cable

Power (user supplied): Regulated 12 Vdc, 800 mA

Monitor base/enclosure material and rating: Polycarbonate | IP41

NEMA 2

Size (with sensor head) (L x W x H): 180 x 110 x 90 mm (7 ⅛ x 4¾ x 3½ in)

Weight (Incl. Sensor): < 850 g; < 30 oz

Environmental operating conditions: 0°C to 40°C 32°F to 104°F

Approvals: Part 15 of FCC Rules, EN 61000-6-3: 200, EN 61000-6-1: 2001
