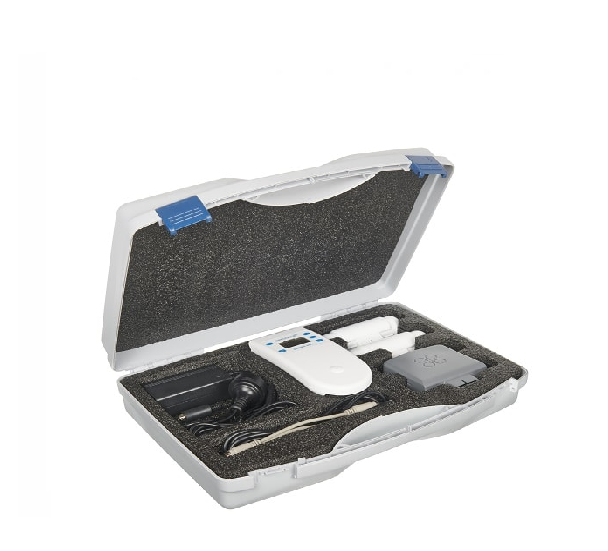

Aeroqual Outdoor Starter Kit 室外空气质量检查套件

Sensor Specifications

Range:

Particulate Matter (PM0 & PM 25): 0.000 to 1.000 mg/m3

Ozone (O3): 0-0.15 ppm

Nitrogen Dioxide (NO2): 0-1 ppm

Sensor type:

Particulate Matter (PM0 & PM 25): LPC

Ozone (O3): GSS

Nitrogen Dioxide (NO2): GSE

Minimum detection limit:

Particulate Matter (PM0 & PM 25): 0.001 mg/m3

Ozone (O3): 0.001 ppm

Nitrogen Dioxide (NO2): 0.005 ppm

Accuracy of factory calibration:

Particulate Matter (PM0 & PM 25): ± (0.002mg/m3 + 15% of reading)

Ozone (O3): < +0.005 ppm

Nitrogen Dioxide (NO2): <+0.002 ppm/ 0-0.2 ppm; <+10%/ 0.2-1 ppm

Resolution:

Particulate Matter (PM0 & PM 25): 0.001 mg/m3

Ozone (O3): 0.001 ppm

Nitrogen Dioxide (NO2): 0.001 ppm

Response time:

Particulate Matter (PM0 & PM 25): 5s

Ozone (O3): 60s

Nitrogen Dioxide (NO2): 30s

Temperature:

Particulate Matter (PM0 & PM 25): 0 to 40°C

Ozone (O3): 0 to 40°C

Nitrogen Dioxide (NO2): 0 to 40°C

Monitor specifications

Measurement units: Gas: ppm or mg/m3 | Humidity: % | Temperature °C or °F

Reading functions: Instant, minimum, maximum, average

Sensor head: Active fan sampling to ensure high accuracy measurements, interchangeable, replaceable

Sensor head calibration: Zero and span calibration

Temperature & humidity sensor: Range -40°C to 124°C (-40°F to 255°F); Range 0 to 100 % RH

Environmental operating conditions: Temperature: -5°C to 45°C |Humidity: 0 to 95% non-condensing

Display status indicators: Battery, sensor, standby

Power supply: 12Vdc (power adaptor/charger supplied 100-250Vac)

Rechargeable battery: Lithium-ion 12Vdc 2700 mA.h

Enclosure material and rating: PC and ABS; IP20 and NEMA 1 equivalent

Size: (L x W x D) 195 x 122 x 54 (mm); 7⅝ x 4¾ x 2⅛ (in) (with sensor head)

Weight: <460g; <16oz (with sensor head and battery)

Approvals: Part 15 of FCC Rules; EN 50082-1: 1997; EN 50081-1: 1992
