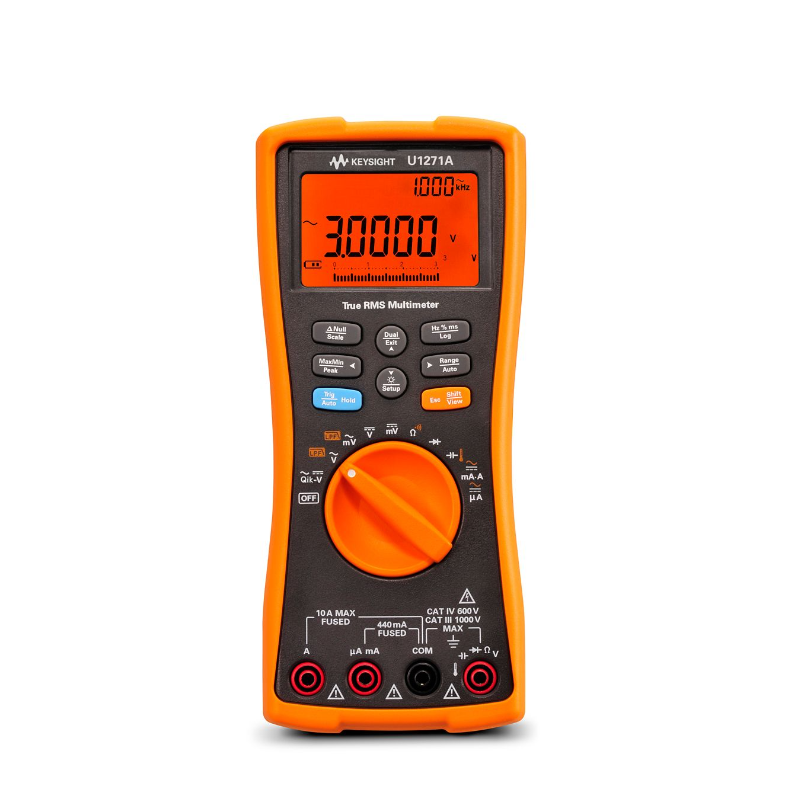

KEYSIGHT U1271A 手持式数字万用表

- High Resolution

- True RMS AC

- Display resolution 30,000

- AC bandwidth: 20Khz

- Voltage DC:

  30.000mV, 300.00mV, 3.000V,

  30.000V, 300.001V, 1000.0V/ 0.05%

- Voltage AC (True RMS):

  30.000mV, 300.00mV, 3.000V,

  30.000V, 300.001V, 1000.0V / 0.7%

- Current DC:

  300.00 μA, 3000.00 μA, 30.000 mA, 300.00 mA /0.2%

  3.0000 A, 10.000 A /0.3%

- Current AC (True RMS):

  300.00μA, 3000.00μA, 30.000 mA, 300.00mA /0.9%

  3.0000 A, 10.000 A /1%

- Resistance:

  30.000Ω, 300.00Ω, 3.0000kΩ, 30.000kΩ, 300.00 kΩ / 0.2%

  3.0000MΩ, 30.000MΩ, 300.00 MΩ, 300.00 nS /0.6%

- Diode: Yes

- Capacitance:

  10.000nF, 100.00nF, 1000.0nF, 10.000μF,

  100.00μF, 1000.0μF, 10.000mF /1%

- Frequency: 99.999-999.99Hz / 0.05%

- Thermocouple type: J (-200 to 1372oC), K(-210 to 1202oC)/ 1%

  (Option type J)

- % Sacle 4-20mA: Yes

- Smart Ω: Yes

- Manual data logging: yes

- PC connectivity: IR-USB (option)

- Connectivity: IR-to-Bluetooth (option)

- Dust and water resistant casing: IP 54

Power supply: 4 pin AAA

Dimensions: 207.0x92.0x59.0

Include: Standard test leads, test probes with 4-mm tips, K-type thermocouple and adapter, 4x AAAbatteries Certificate of Calibration, UK 6 (test report), Quick Start Guide

View Data Sheet

 Option

U1162A	Alligator clip
U1163A	Grabbers, SMT
U1164A	Test probes, fine tip
U1168B	Test lead kit
U1169A	Test Probe Leads (with 19-mm tips and 4-mm tips)
U1171A	Magnetic hanging kit
U1172A	Transit case for handheld DMM, aluminum-clad
U1173A	Cable, IR to USB
U1174A	Carrying case, soft
U1177A	Bluetooth adaptor
U1181A	Immersion probe type K
U1182A	Surface probe, industrial
U1183A	Probe, air
U1184A	Adaptor, temperature probe
U1185A	Thermocouple (J-type) and adaptor
U1186A	Thermocouple (K-type, 1m) and adapter
U1583B	AC current clamp
