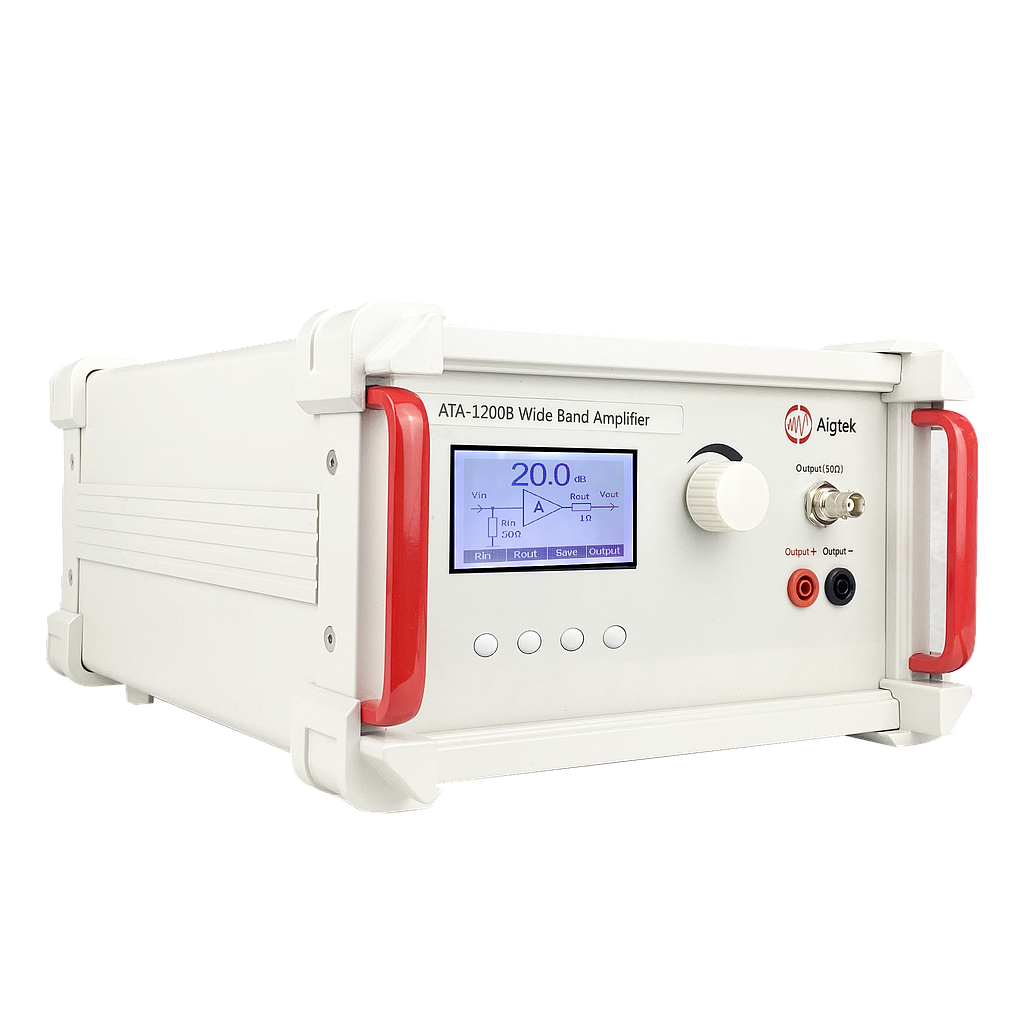

Aigtek ATA-1200B 宽带放大器 ((-3dB) DC~25MHz, 30Vp-p (± 15Vp), 1Ap, 15Wp, 1CH)

Output form: Single output

Bandwidth (-3dB): DC~25MHz

Maximum output voltage: 30Vp-p (±15Vp)

Maximum output current:

500mAp (DC~50Hz)

1Ap (50Hz~25MHz)

Maximum output power: 15Wp

Voltage gain: 20dB adjustable (0.5dB step)

Load RL upper limit: ≥15Ω (above 50Hz)

Slew Rate: 1665V/μs

Output resistance: 1Ω / 50Ω


Input resistance: 50Ω / 1MΩ

Input amplitude: 0~10Vp-pMAX

Output voltage error: ≤±3%FS@1kHz

Total harmonic distortion (THD): ≤0.1%@1kHz,30Vp-p

Output voltage zero-point drift: ≤0.1V

Signal-noise ratio (SNR): ≥80dB

Output Connector: BNC、4mm Banana socket

Protection: Overcurrent protection

Signal Ground: It is connected with the grounding of the shell and the power line

Supply voltage: AC220V±10%,50Hz

Fuse: 1A/250V

Operating temperature: 0℃~45℃

Storage temperature: -20℃~50℃

Humidity: ≤80%RH,no condensation

Size (W * H * D): 262*163*365mm
