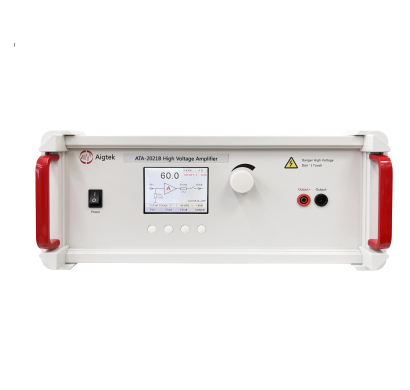

Aigtek ATA-2021B 高压功率放大器 (DC~1MHz, 200Vp-p)

No. Of Channel: 1

Form of Output: Single-ended output

Bandwidth(-3dB): DC~1MHz

Max. Output Voltage: 200Vp-p

Range of Output Voltage:Range1:+40V~-160V

Range2:+100V~-100V

Range3:+160V~-40V

Max. Output Power: 50Wp

Fuse: 2A/250V

Voltage Gain: x0~60(0.1 step/1 step)

Upper Limit of Load RL: ≥395Ω(DC~50Hz)

≥195Ω(>50Hz)

DC Offset: ±160V(0.1V step/1V step)

Voltage Range of DC Offset: Range1:+40V~-160V

Range2:+100V~-100V

Range3:+160V~-40V

Output Resistance: 5Ω /50Ω (customizable)

Input Resistance: 50Ω / 10kΩ

Input Amplitude: 0~10Vp-pMAX

Output Voltage Error: ≤±3%FS@1kHz

Voltage Monitor: 20mV/V

Current Monitor: 2V/A

Slew Rate: ≥445V/μs

THD: ≤0.1%@1kHz,100Vp-p

Zero Drift of Output Voltage: ≤±0.1V

Signal-noise ratio (SNR): ≥80dB

Output Connector: 4mm banana connector

Protection: Over current protection

Signal Ground: Connected to the case and power line

Supply Voltage: 110V~250VAC,50Hz/60Hz

Operating Temperature: 0°C ~ 45°C

Storage Temperature: -20°C ~ 50°C

Humidity: ≤80% RH,no condensation

Size: 365*163*365mm (w * h * d)
