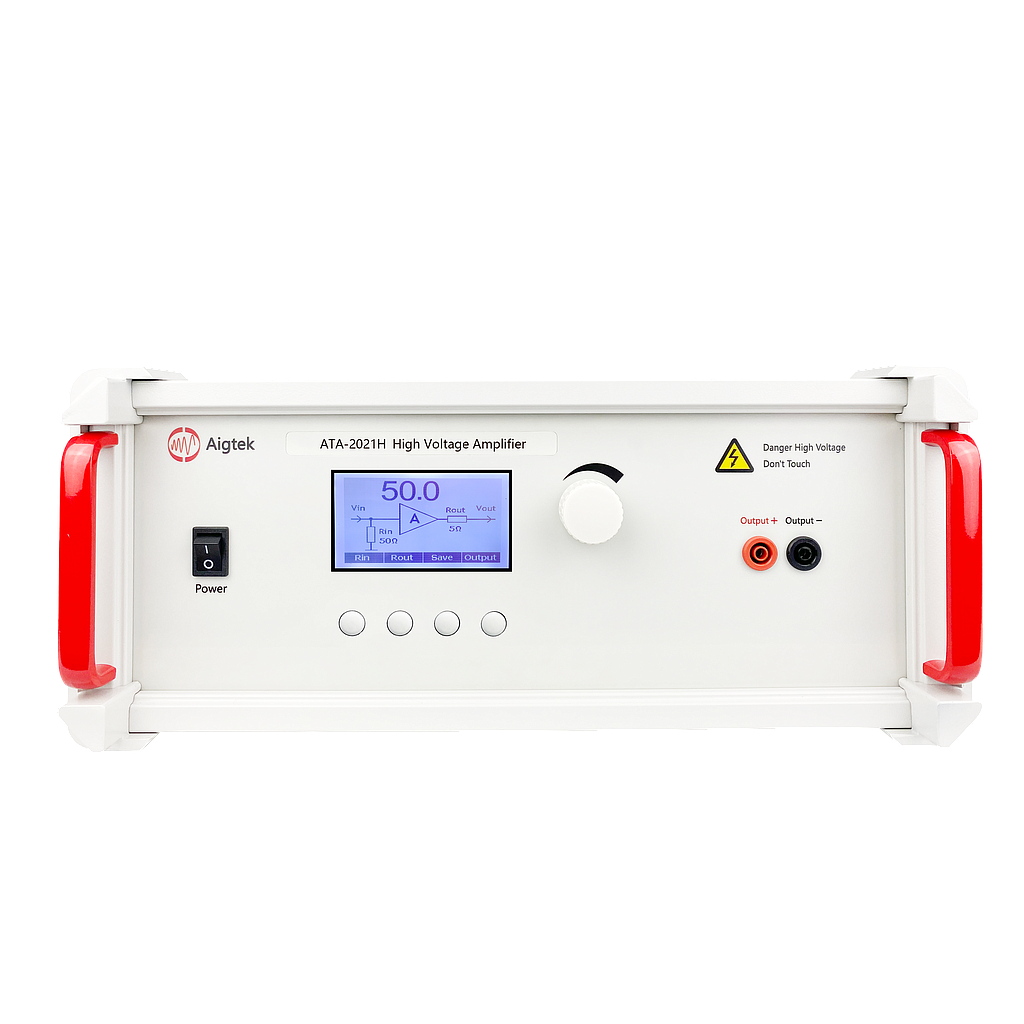

Aigtek ATA-2021H 高压放大器 ((-3dB) DC ~ 1MHz, 200Vp-p (±100Vp), 500mAp, 50Wp, 1CH)

Number of channels: 1

Output form: Single output

Bandwidth(-3dB): DC~1MHz

Maximum output voltage: 200Vp-p(±100Vp

Maximum output current :500mAp

 Maximum output power: 50Wp

Fuse: 2A/250V

Voltage gain :x0~60(0.1 step)

Load RL upper limit: ≥200Ω

Output resistance: 5Ω /1kΩ (Customizable)

Input resistance :50Ω / 5kΩ

Input amplitude :0~10Vp-pMAX

Output voltage error: ≤±3% FS@1kHz

Voltage monitoring :100:1(±5%)

Slew Rate :500V/μs

Total harmonic distortion (THD): ≤0.1%@1kHz,100Vp-p

 Output voltage Zero-point drift :≤0.1V

 Signal-noise ratio(SNR) :≥80dB

 Output Connector: 4mm Banana socket

 Protection :Overcurrent protection

Signal Ground: It is connected with the grounding of the shell and the power line

Supply voltage: AC220V±10%,50Hz

Operating temperature :0℃~45℃

Storage temperature :-20℃~50℃

Humidity: ≤80%RH,No condensation

 Size (W * H * D): 365*163*365mm
