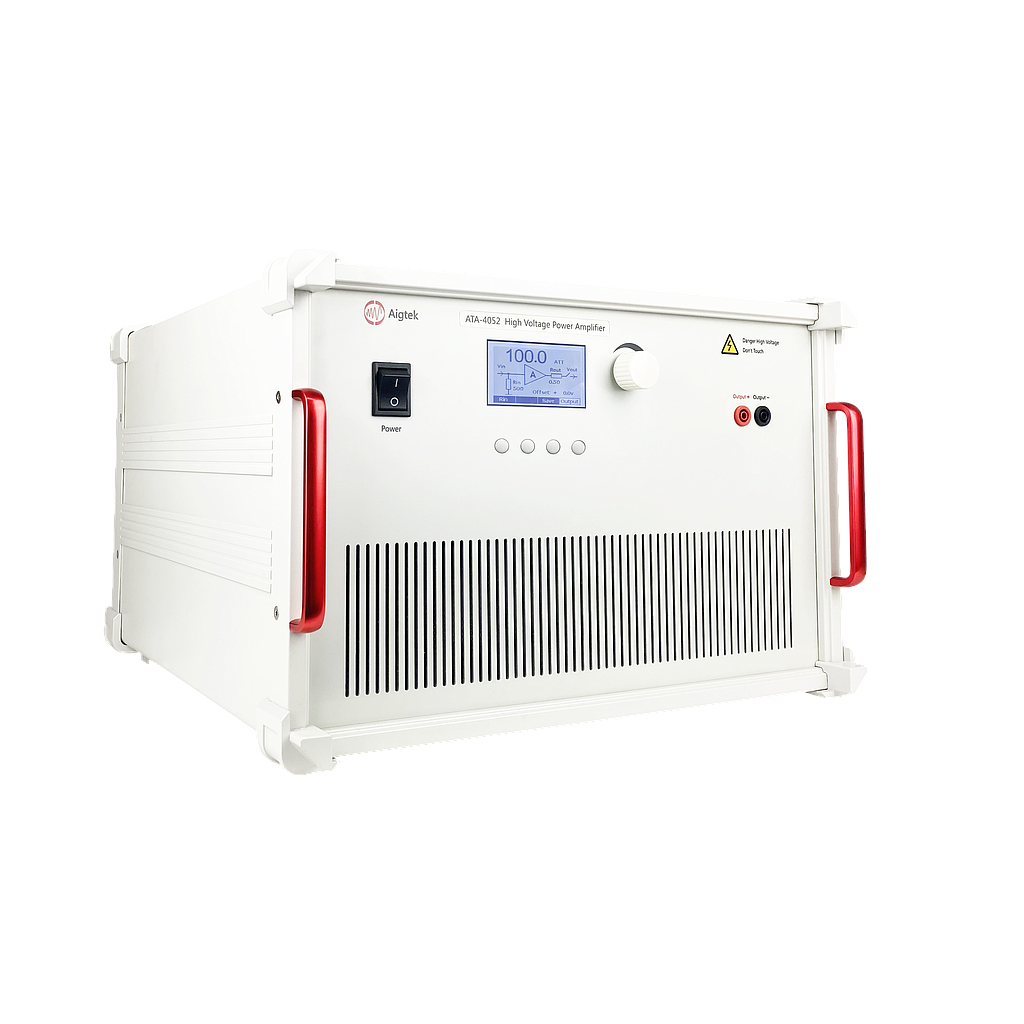

Aigtek ATA-4052 高压功率放大器 ((-3db) DC ~ 500kHz, 310Vp-p (±155Vp), 2Arms, 437.1Wp, 1CH)

Output form: Single output

Bandwidth（-3dB）:  DC~500kHz

Maximum output voltage:  310Vp-p(±155Vp)

Maximum output current:  1Ap(DC-50Hz), 2.82Ap，2Arms（50Hz~500kHz）

Maximum output power:  437.1Wp

Fuse:  10A/250V

Voltage gain:  x0~100(0.1step)

Load RL upper limit:  ≥54.8Ω (above 50Hz)

Output impedance:  0.5Ω＋1.6uH

Slew Rate:  400V/μs

DC bias:  ±150V(0.1Vstep)

Input impedance:  50Ω / 5kΩ

Input amplitude:  0~10Vp-pMAX

Output voltage error:  ≤±3%FS@1kHz

Voltage monitoring:  100:1（±5%）

Total harmonic distortion （THD）:  ≤0.1%@1kHZ，100Vp-p

Output voltage zero-point drift:  ≤0.1V

Output Connector:  4mm Banana socket

Protection:  Overcurrent protection

Signal Ground:  It is connected with the grounding of the shell and the power line

Supply voltage:  AC220V±10%，50Hz

Operating temperature:  0℃~45℃

Storage temperature:  -20℃~50℃

Humidity:  ≤80% RH，no condensation

Size(W * H * D):  440*290*470mm
