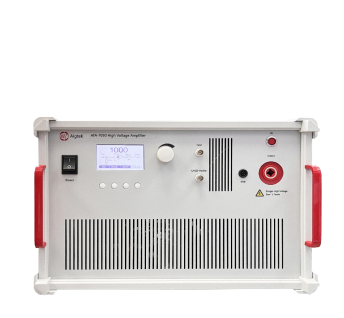

Aigtek ATA-7050 高压放大器 (DC~5kHz, 10kVp-p(±5kVp))

No. of Channel: 1

Form of Output: single-ended output

Bandwidth(-3dB): DC~5kHz

Max. Output Voltage: 10kVp-p(±5kVp)

Max. Output Current: 10mAp(DC~50Hz)


Max. Output Power: 100Wp

Fuse: 4A/250V

Voltage Gain: x0~2000(1 step/10 step)

Upper Limit of Load RL: ≥495kΩ(DC~50Hz)


Output Resistance: 5kΩ, 200kΩ switchable

Input Resistance: 10kΩ

Input Amplitude: 0~10Vp-pMAX

Output Voltage Error: ≤±3%@(DC,5kV)

Voltage Monitor: 1000:1

Slew Rate: ≥111V/μs

(THD): ≤1%@1kHz,1kVp-p

Zero Drift of Output: ≤±1V

Output Connector: high voltage connector

Protection: over current protection

Signal Ground: connected to the case and power line

Supply Voltage AC: 220V±10%,50Hz

Operating Temperature: 0°C ~ 45°C

Storage Temperature: -20°C ~ 50°C

Humidity: ≤ 80% RH,no condensation

Dimension: 440*290*565mm (w * h * d)
